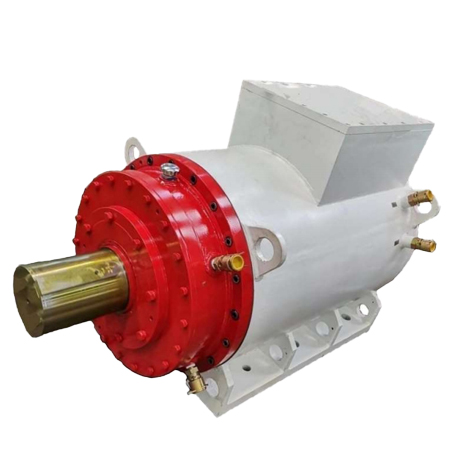

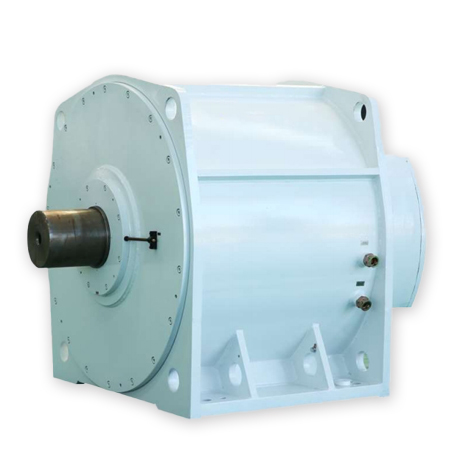

Two types of permanent magnet direct-drive systems were jointly developed and produced by the National Center for Rare Earth Permanent Magnet Motors Engineering Technology, led by Academician Tang Renyuan of the Chinese Academy of Engineering, and our company through the cooperation model of industry-academia-research.

Send Inquiry

Product Description

Permanent Magnet Synchronous Motor Datasheet (Low Voltage: 55kW-1000kW)

Power (kW)	Frame	Type	r/min	Eff %	cosφ	Current (A)			Torque (N.m)	OTM	S/T/m	Weight (kg)
Power (kW)	Frame	Type	r/min	Eff %	cosφ	380V	660V	1140V	Torque (N.m)	OTM	S/T/m	Weight (kg)
55	560S	TVF-55/30YC	48	93.5	0.96	105	59	34.3	10943	2	2.2	3040
	450L		60	93.5	0.96	104.2	58	34	8754	2	2.2	2470
	450M		75	93	0.95	103.7	57.5	33	7003	2	2.2	2300
	450S		90	93	0.95	103	57	32.8	5836	2	2.2	2055
75	560M	TVF-75/30YC	48	94.5	0.95	135	80.1	48.8	14922	2	2.2	3100
	560S		60	94.5	0.95	133	79.5	48.6	11938	2	2.2	2650
	450L		75	94	0.95	131	78.9	48.2	9550	2	2.2	2560
	450M		90	94	0.95	129.4	78	48	7958	2	2.2	2130
110	560L	TVF-110/40YC	48	94.5	0.96	199.5	115	72	21885	2	2.2	3975
	560L		60	94.5	0.96	196	112.7	71.5	17508	2	2.2	3425
	560S		75	94	0.96	191	110	71	14007	2	2.2	3250
	560S		90	94	0.96	186	109	68	11672	2	2.2	3060
315	680L1	TVF-315/40YC	48	95.5	0.96	590	350	206	62672	2	2.2	8400
	680M1		60	95.5	0.96	579	340	200	50138	2	2.2	7995
	680S2		75	95	0.96	560	325	190	40110	2	2.2	7300
	680S2		90	95	0.96	536	310	185	33425	2	2.2	6520

Permanent Magnet Synchronous Motor Datasheet (High Voltage: 315kW-1850kW)

Power (kW)	Frame	Type	r/min	Eff %	cosφ	Current (A)			Torque (N.m)	OTM	STM	Weight (kg)
Power (kW)	Frame	Type	r/min	Eff %	cosφ	3300V	6000V	10000V	Torque (N.m)	OTM	STM	Weight (kg)
315	680L2	TVF-315/80YC	48	95.5	0.96	64	35	20.8	62672	2	2.2	8650
	680L1		60	95.5	0.96	64	35	20.8	50138	2	2.2	8080
	680M2		75	95	0.96	64	35	20.8	40110	2	2.2	7450
	680M1		90	95	0.96	64	35	20.8	33425	2	2.2	6650
1000	1250L	TVF-1000/80YC	60	95.5	0.96	195	108	64.3	159167	2	2.2	24400
	1250M		75	95.5	0.96	195	108	64.3	127333	2	2.2	23600
	1250S		90	95.5	0.96	195	108	64.3	106111	2	2.2	22000

Product Visual Documentation

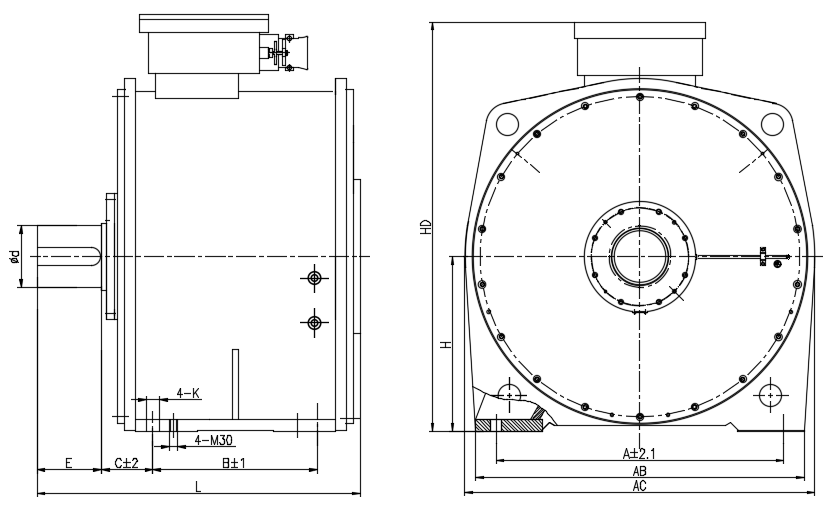

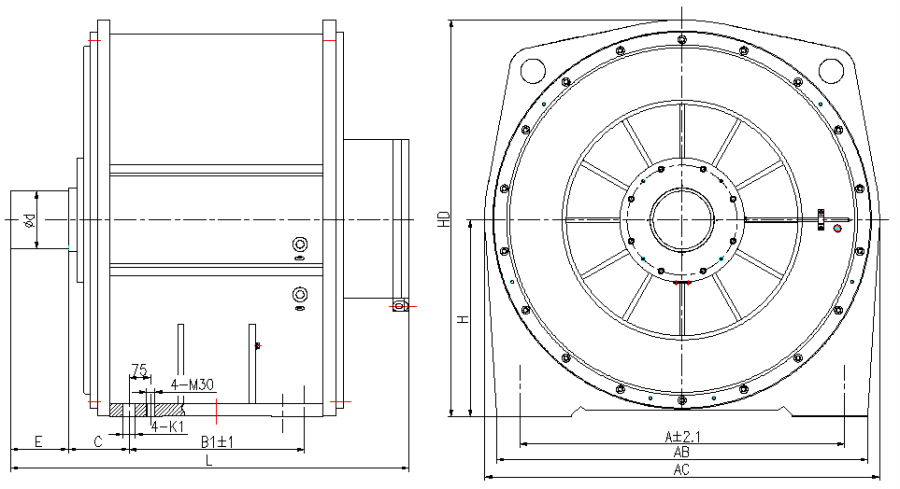

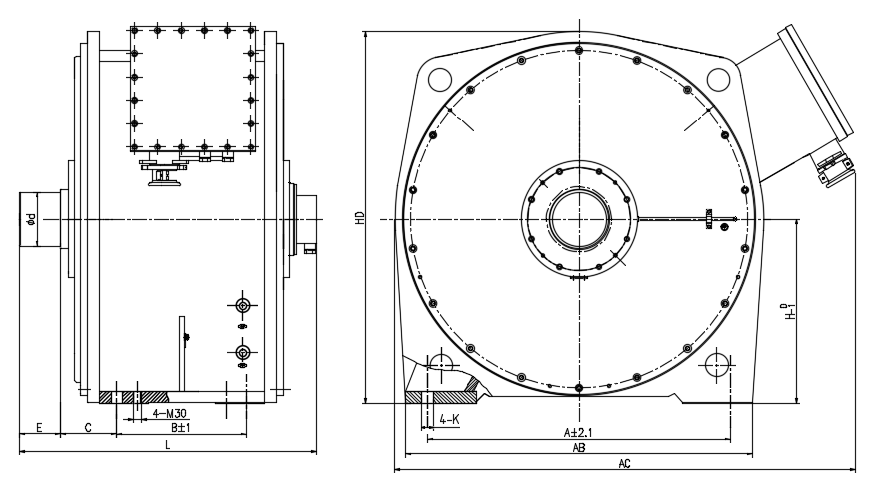

Mounting Dimensions (mm)

Frame	Type	Mounting Dimensions							Appearance Dimensions
Frame	Type	Φd	E	C	B	A	K	H	L	AB	HD	AC
450	S	130	150	172	445	620	36	450	1010	820	1048	826
	M	130	150	172	560	620	36	450	1185	820	1048	826
	L	150	150	172	630	620	36	450	1405	820	1048	826
560	S	150	150	195	425	810	36	560	1145	1010	1125	1130
	M	150	150	195	500	810	36	560	1220	1010	1125	1130
	L	150	150	195	575	810	36	560	1300	1010	1125	1130

Note: For application scenarios where the installation conditions are restricted by working conditions, the installation dimensions can be customized. Please contact the technical department for details.

Frequently Asked Questions (FAQ)

What is the power range for these Permanent Magnet Synchronous Motors?

The low voltage series covers 55kW to 1000kW, while the high voltage series ranges from 315kW up to 1850kW.

Can the motor mounting dimensions be customized?

Yes. In scenarios where installation conditions are restricted, mounting dimensions can be customized to meet specific requirements.

What are the common voltage ratings supported?

Low voltage models support 380V, 660V, and 1140V. High voltage models support 3300V, 6000V, and 10000V.

How high is the energy efficiency of these motors?

Most models feature an efficiency rating between 93% and 95.5%, depending on the specific frame size and power output.

What is the significance of the "cosφ" value in the datasheet?

The cosφ (Power Factor) is consistently high (typically 0.95 or 0.96) across the range, indicating high electrical efficiency and reduced reactive power consumption.

Are there different frame sizes available for the same power output?

Yes, as shown in the tables, a specific power rating (like 55kW) can be paired with different frame sizes (e.g., 560S, 450L) based on the required speed and torque.
