Our items have national accreditation requirements for qualified, high quality products, affordable value, was welcomed by people today all over the world. Our goods will continue to enhance within the order and look forward to cooperation with you, Should any of these products be of interest to you, please let us know. We are going to be content to offer you a quotation up on receipt of your detailed needs.
| Frame No. | Pole | N | P | M | D | E | F | G | T | LA | AC | AD | L |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 355 | 4,6 | 880 | 1000 | 940 | 100 | 210 | 28 | 90 | 6 | 32 | 1100 | 800 | 1800 |
| 400 | 4,6,8,10 | 1000 | 1150 | 1080 | 110 | 210 | 28 | 100 | 6 | 35 | 1150 | 850 | 1900 |
| 450 | 4 | 1120 | 1250 | 1180 | 120 | 210 | 32 | 109 | 6 | 35 | 1300 | 900 | 2100 |
| 6,8,10,12 | 130 | 250 | 119 | ||||||||||
| 500 | 4 | 1250 | 1400 | 1320 | 130 | 250 | 32 | 119 | 8 | 35 | 1400 | 965 | 2400 |
| 6,8,10,12 | 140 | 36 | 128 | ||||||||||
| 560 | 4 | 1400 | 1600 | 1500 | 150 | 250 | 36 | 138 | 8 | 42 | 1600 | 1100 | 2500 |
| 6,8,10,12 | 160 | 300 | 40 | 147 | |||||||||
| 630 | 4 | 1600 | 1800 | 1700 | 170 | 300 | 40 | 157 | 9 | 42 | 1800 | 1200 | 2900 |
| 6,8,10,12 | 180 | 45 | 165 |
Note: The data listed in the table is for the user's reference. In case of any discrepancy with the random file, the random file shall prevail.

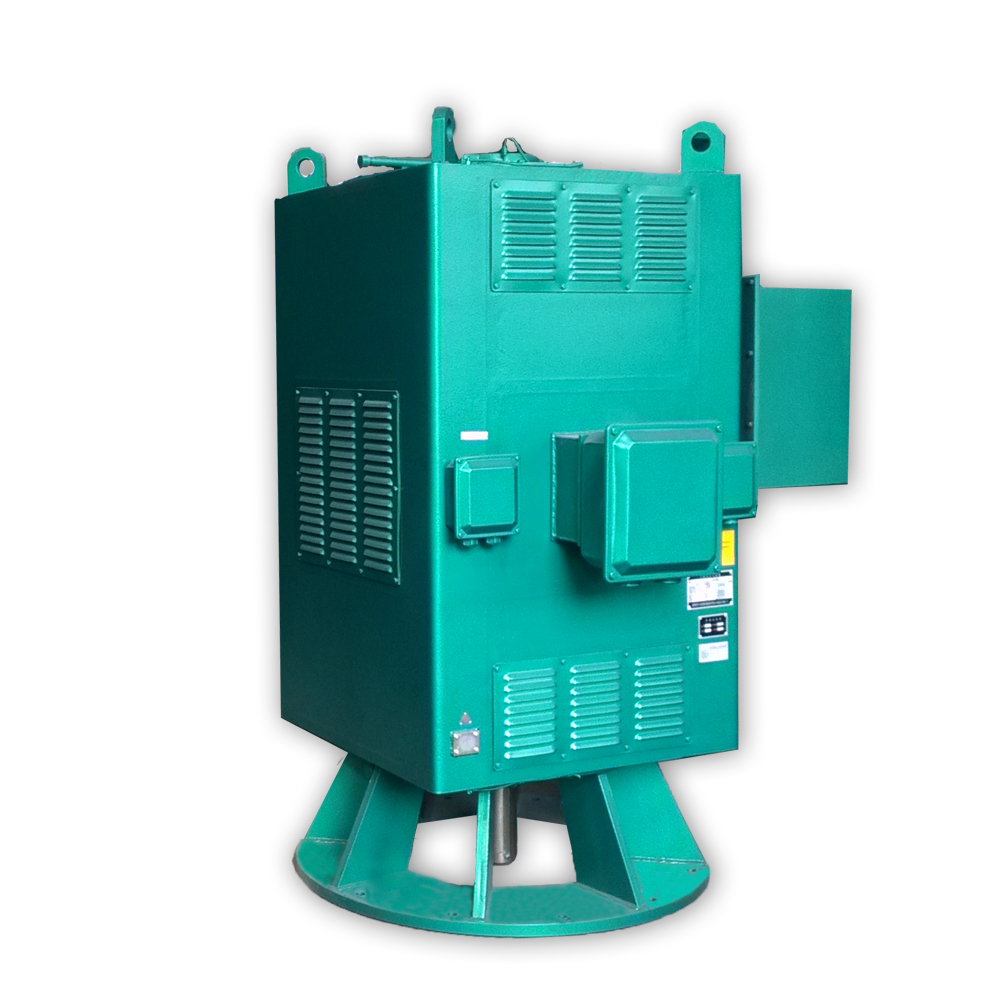

YL series motors frame is welded from steel plate, providing excellent rigidity and vibration resistance. They are manufactured with F insulation structure and VPI vacuum pressure impregnation process. The non-stop loading and unloading bearing system ensures easy maintenance.
