Technical Specifications
| Standard |
IEC60034 |
| Frame size |
H80-315mm |
| Rated power |
0.75kW-200kW |
| Energy efficiency |
IE5 |
| Voltage and frequency |
400V/50Hz |
| Degree of protection |
IP55 |
| Insulation/Temp rise |
F/B |
| Installation Method |
B3, B5, B35, V1 |
| Ambient temperature |
-15°C ~ +40°C |
| Operating Humidity |
Relative humidity less than 90% |
| Altitude |
Lower than 1000 m above sea level |
| Cooling Method |
IC411 |
| Duty Cycle |
S1 |
| Service factor |
1.0 |
Product Overview

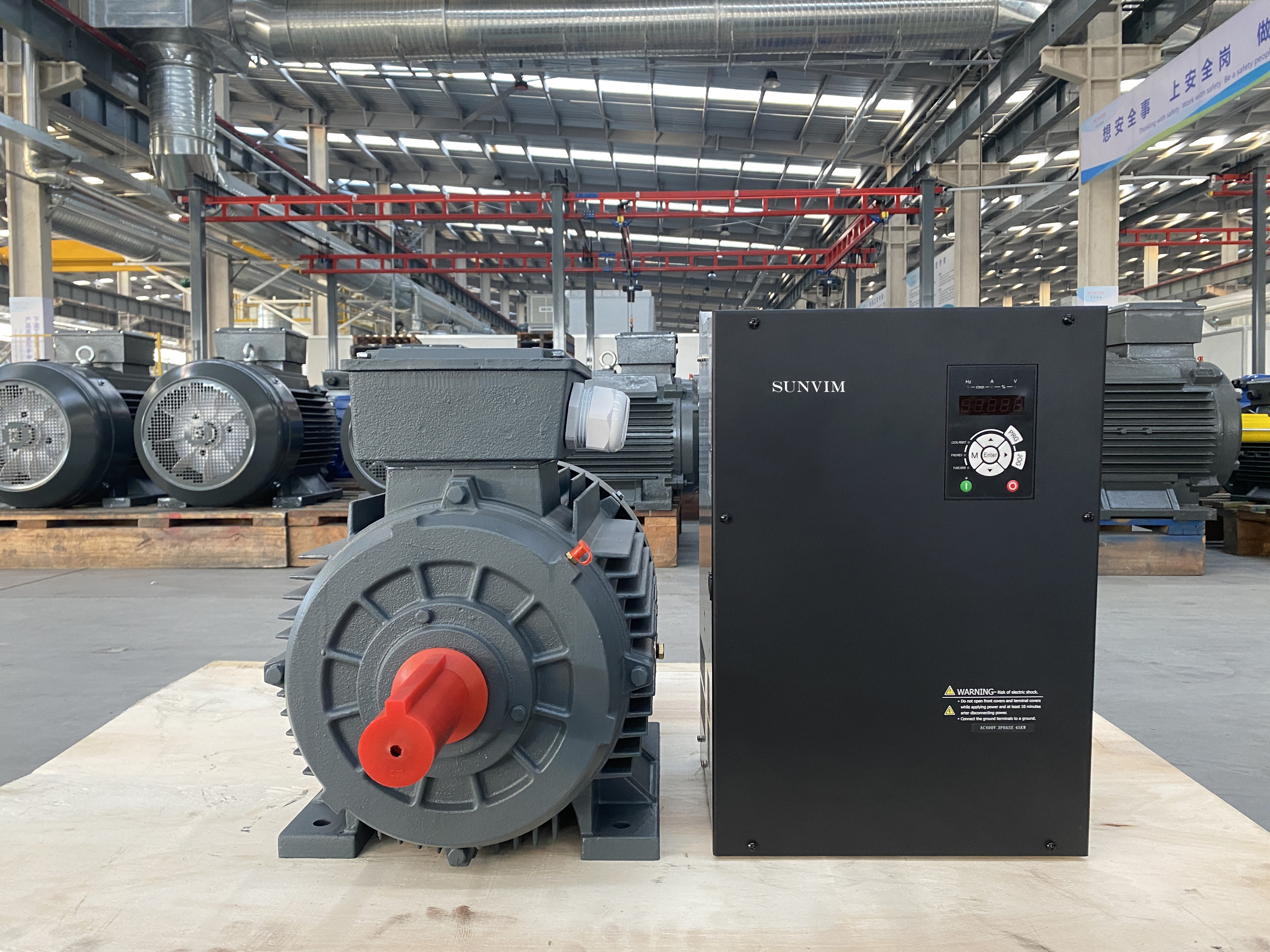

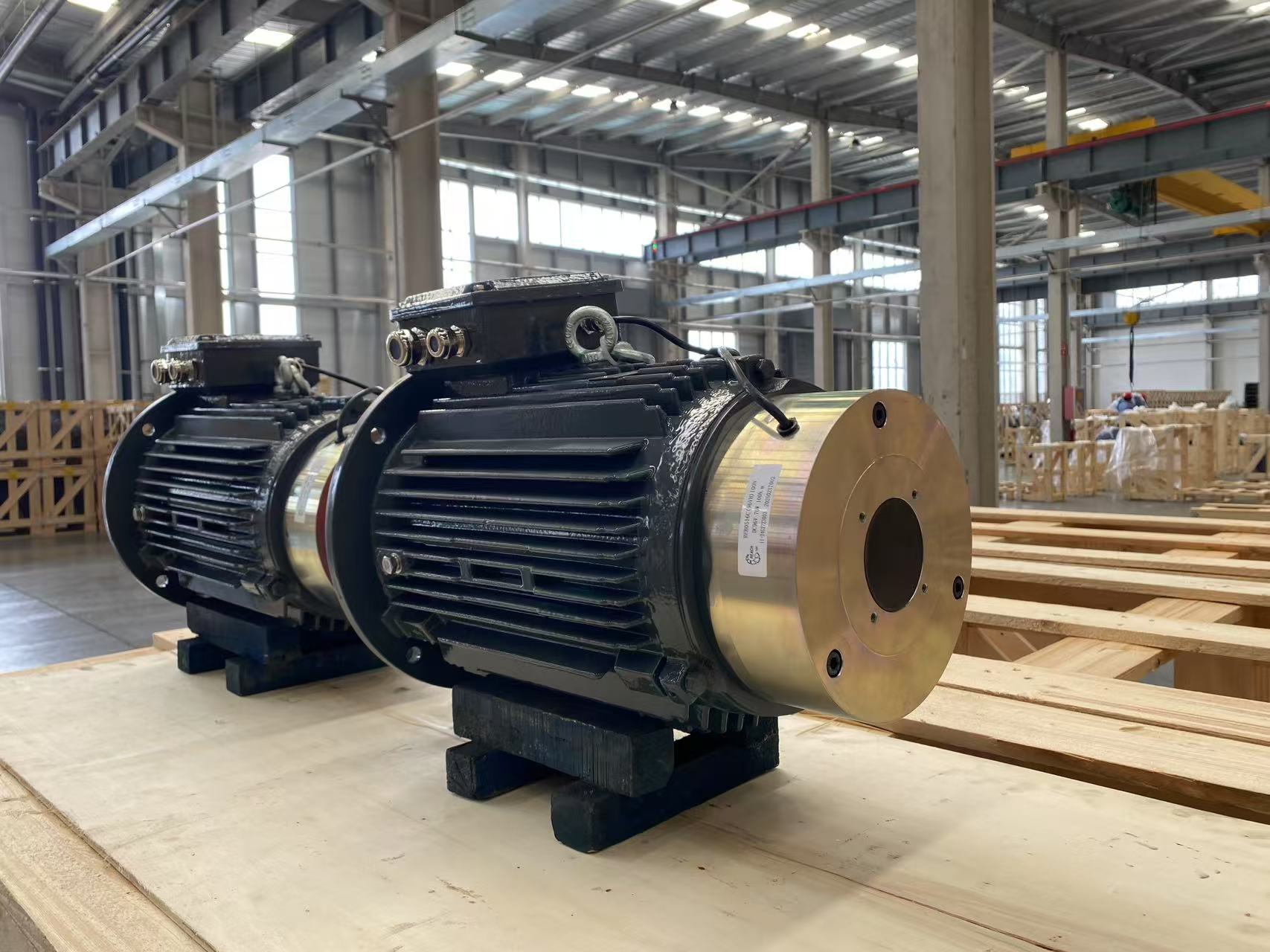

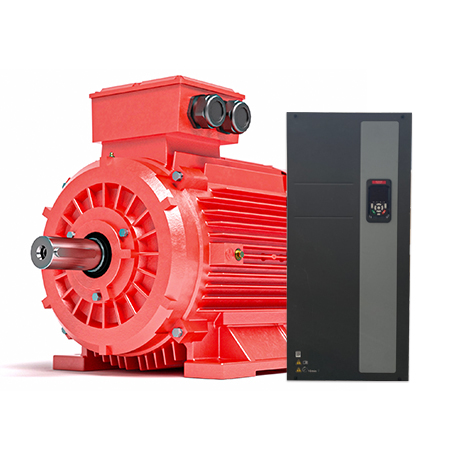

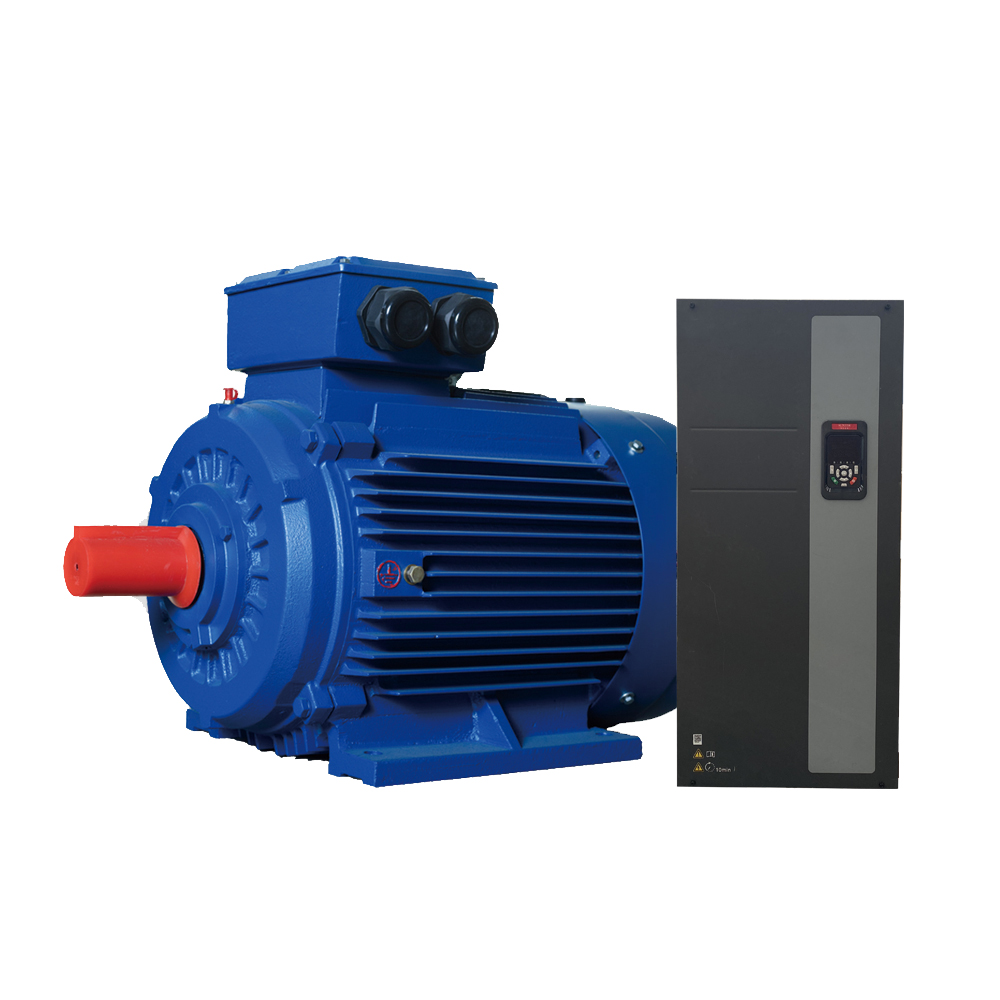

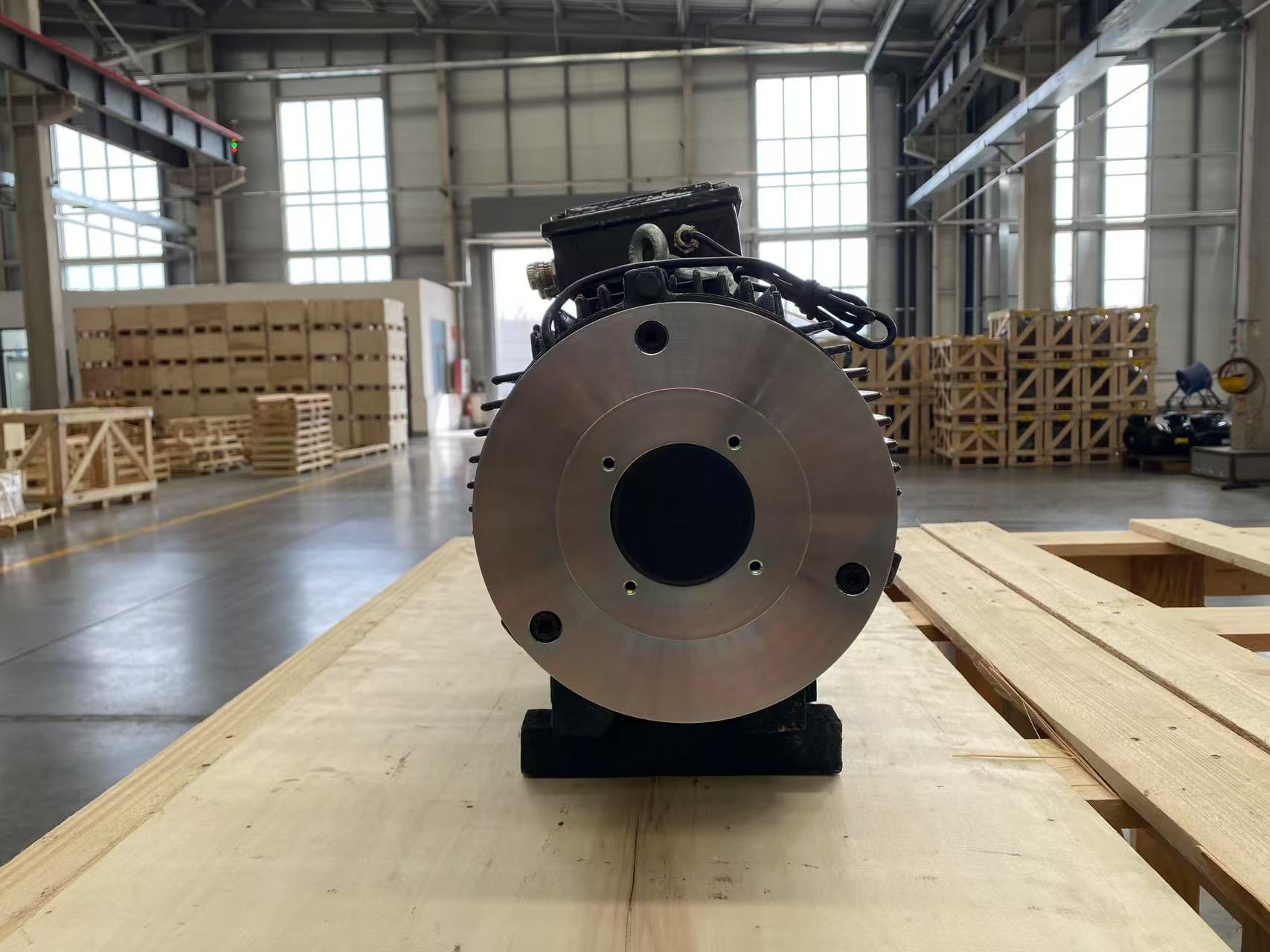

SCZ series Synchronous Reluctance Motors are independently designed features. The motor is a three-phase electric motor with a magnetically anisotropic rotor structure. It adopts the IEC standard frame size design to meet different needs of customers, and can provide IE5, IE4, IE3 series products, including pure synchronous reluctance motors.
Customization & Special Requirements
✓ Special voltage, frequency, and power ratings
✓ Custom insulation and protection classes
✓ Terminal box on the left side, double shaft ends, and special shafts
✓ High temperature or low temperature resistant designs
✓ Specialized configurations for plateau or outdoor environments
✓ Integration of heaters, PT100 for bearings or windings, and PTC sensors
✓ Encoders, insulated bearings, or specialized insulated bearing structures
Note: When ordering, please specify the motor type, power, voltage, speed, insulation class, protection class, and mounting type.
Frequently Asked Questions
● What energy efficiency levels are available for the SCZ series?
The SCZ series motors are designed to meet high efficiency standards, offering IE5, IE4, and IE3 series products to help reduce energy consumption.
● Can these motors be used in high-altitude areas?
Standard models are suitable for altitudes up to 1000m. However, we can design specialized motors specifically for plateau environments upon request.
● What are the standard mounting options?
The SCZ series supports several standard installation methods, including B3, B5, B35, and V1, ensuring compatibility with most industrial machinery.
● Is it possible to customize the motor for extreme temperatures?
Yes, we provide customization for both high-temperature and low-temperature operating environments outside the standard -15°C to +40°C range.
● What additional monitoring features can be added?
We can integrate various accessories such as PT100 sensors for windings and bearings, PTC thermistors, heaters, and encoders for precision monitoring.
