Famous Y-H Marine Motors Suppliers, Product

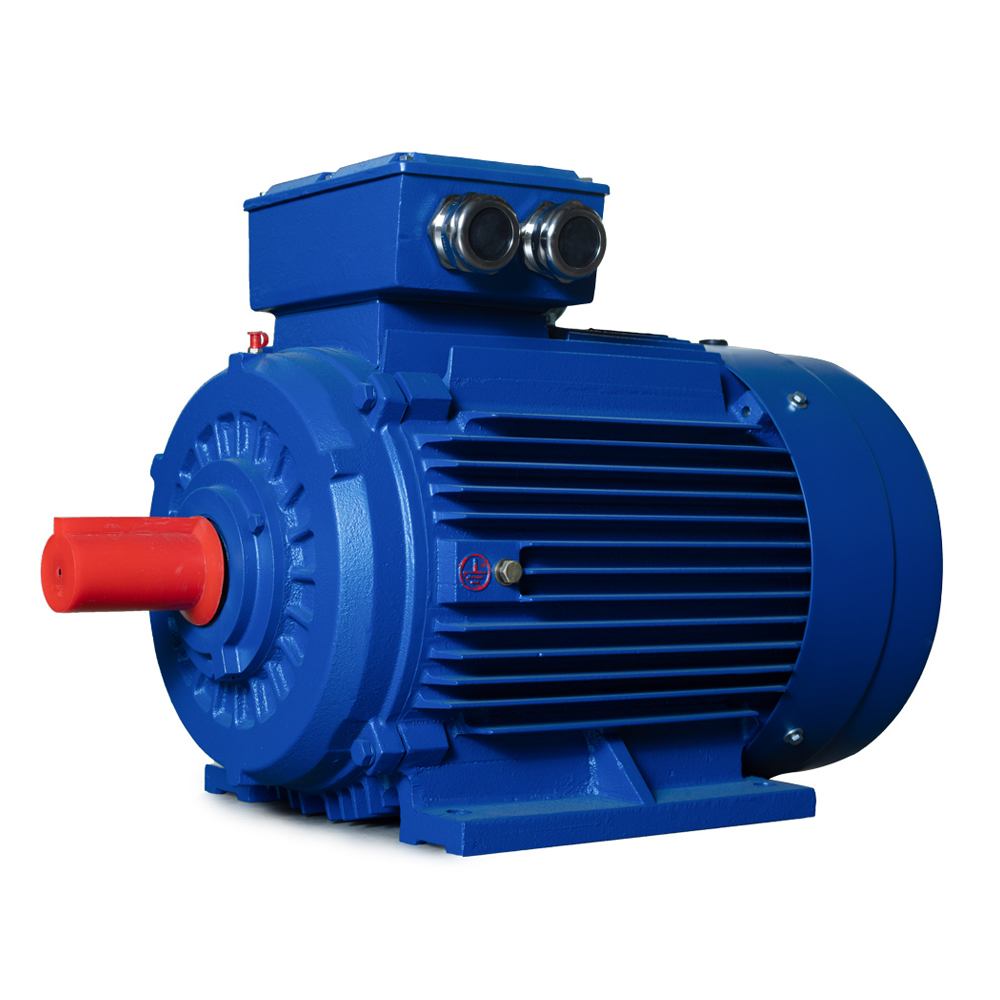

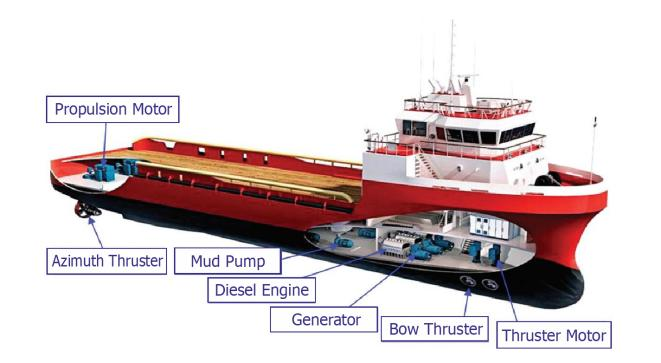

Y-H series motors are totally enclosed fan cooled three phase asynchronous induction motor for marine use. The motors have good features of low noise, slight vibration, high locked-rotor torque and reliable operation. They can be used to drive various machines on ships, including pumps, ventilators, separators, hydraulic machines and other machines. The motors can also be used in hazardous areas with dewdrops, salt-fog, oil mist, fungi, vibration and shock.

Send Inquiry

Product Description

Technical Specifications

Frame size	80-355
Output	0.75kW-315kW
Voltage / Frequency	≤1000V / 50Hz, 60Hz
Protection degree	IP55 / IP56 / IP65 / IP66
Insulation / Temp Rise Class	F / B
Mounting arrangements	IM B3 / IM B5 / IM B35 / IM V1
Ambient temperature	0°C ~ +45°C
Relative humidity	Less than 90%
Cooling method	IC411, IC416, IC418, IC410
Duty	S1
Service factor	1.0

Special Customizable Requirements

Special voltage, frequency and power

Special insulation and protection classes

Terminal box on left, double shaft ends or special shafts

High temperature or low temperature motor designs

Configurations for plateau or outdoor use

Higher power or special service factors

Equipped with heater, PT100 for bearings/winding, or PTC

Encoder, insulated bearings, or insulated bearing structure

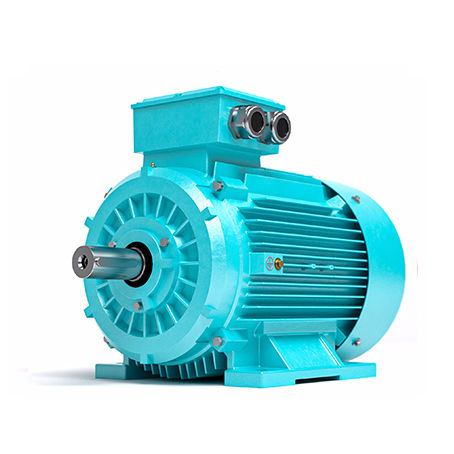

Y-H series motors are totally enclosed fan cooled three phase asynchronous induction motors specifically designed for marine use. We utilize advanced production technology and pursue innovative product design. Our commitment to service excellence has built a strong international reputation.

ABS Product Design Assessment

DNV TYPE APPROVAL

Ordering Note: When ordering, please specify the rated data, including motor type, power, voltage, speed, insulation class, protection class, and mounting type.

* This catalogue is for reference only. Product specifications may change without advance notice.

Frequently Asked Questions

What is the power output range for the Y-H series marine motors?

The series covers an output range from 0.75kW up to 315kW.

What protection degrees are available for these motors?

We provide multiple protection levels including IP55, IP56, IP65, and IP66 to suit different marine environments.

Are these motors suitable for extreme temperatures?

The standard ambient temperature range is 0°C to +45°C, but we can design special high-temperature or low-temperature motors upon request.

Can the motor terminal box position be customized?

Yes, we can design motors with the terminal box located on the left side, as well as double shaft ends or special shaft configurations.

What international marine certifications do these motors hold?

The motors have received the ABS Product Design Assessment and the DNV TYPE APPROVAL CERTIFICATE.
