Discount YEJ Brake Motors Companies, Product

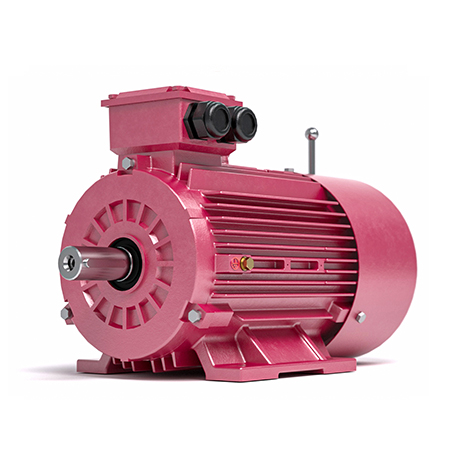

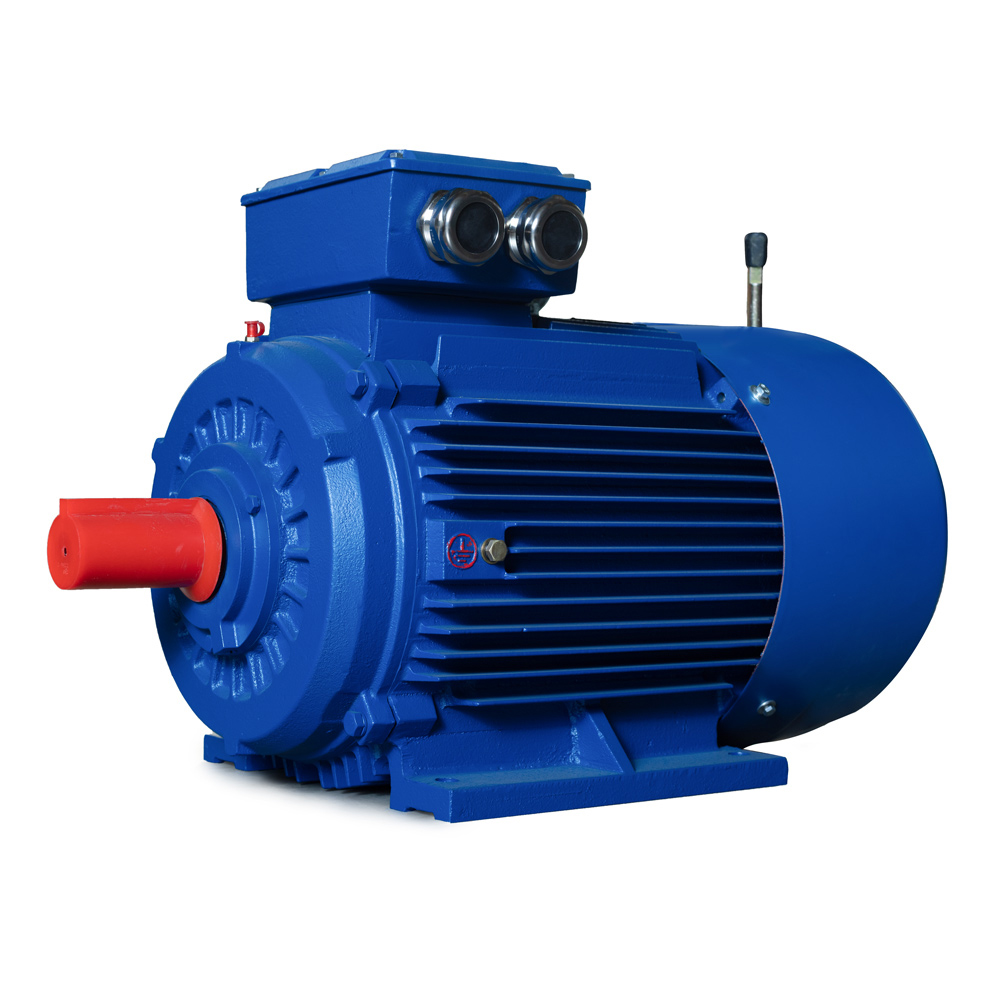

YEJ Brake series motors are derived from IE1 series motors with fast braking, simple structure and high stability. They are widely used on mechanical equipment and driving machines where rapid and accurate braking is demanded, such as lathe machine, packing machine, wood machine, food processing equipment, chemical engineering, textile machine, architectural machine, gear reducer and so on.

Send Inquiry

Product Description

Technical Specifications

Frame size	80-280
Output	0.18kW-90kW
Voltage / Frequency	≤1000V / 50Hz, 60Hz
Protection degree	IP55 (motor) / IP23 (brake)
Insulation / Temp Rise	Class F / Class B
Mounting arrangements	IM B3 / IM B5 / IM B35 / IM V1
Ambient temperature	-15°C ~ +40°C
Relative humidity	Less than 90%
Altitude	Lower than 1000 m above sea level
Cooling method	IC411 / IC416 / IC418 / IC410
Duty	S1
Service factor	1.0

Special Design Options

✓ Special voltage, frequency and power

✓ Special insulation and protection classes

✓ Left-side terminal box or double shaft ends

✓ High or low temperature environment designs

✓ Plateau or outdoor application usage

✓ Higher power or special service factors

✓ Heaters, PT100 (bearings/winding), or PTC

✓ Encoders, insulated bearings/structures

YEJ series motors feature fast braking capabilities, making them ideal for mechanical equipment and driving machines where rapid and accurate braking is demanded.

* Please provide rated data when ordering, including motor type, power, voltage, speed, insulation class, protection class, and mounting type.
