Best YVF Converter-Fed Motors Quotes, Product

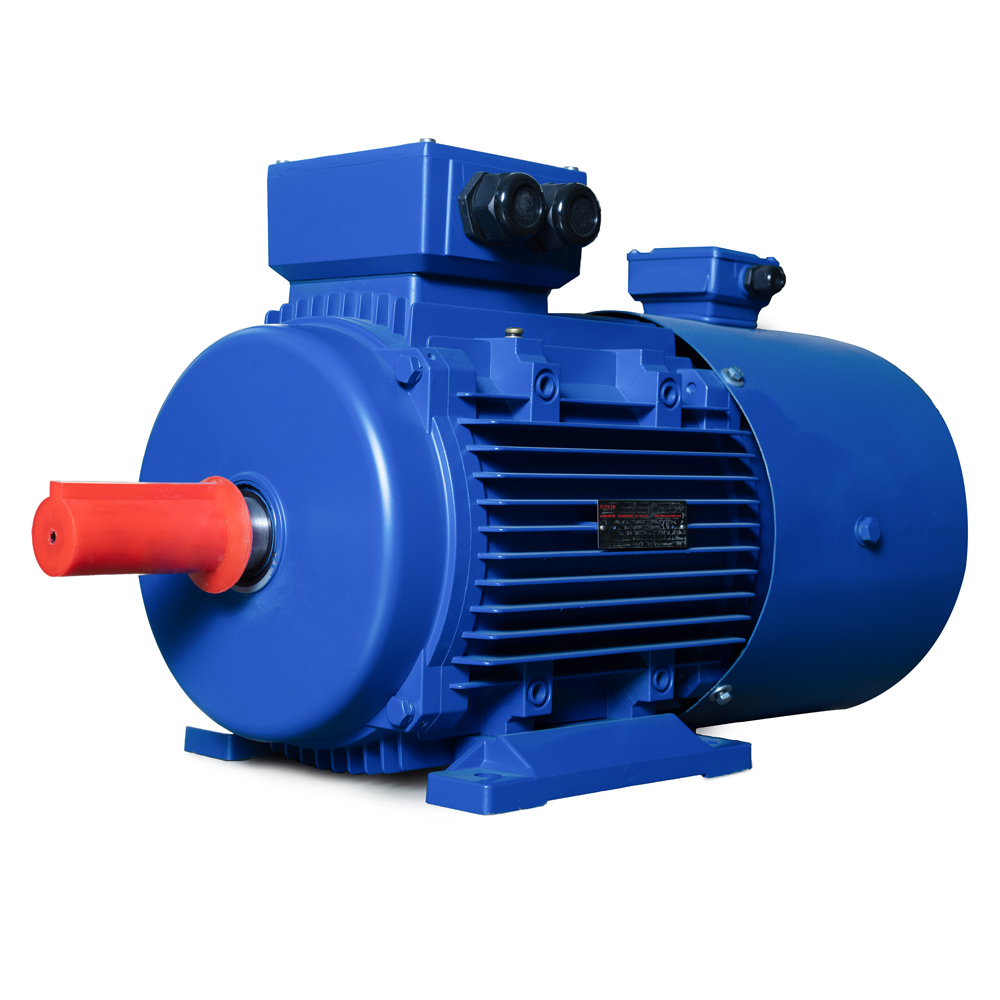

YVF series motors use squirrel-cage rotor structure and stand out for reliable operation and easy maintenance. Together with the variable frequency inverters, the motor system can realize a range of speed adjustment which can save energy and achieve automatic controlling. If fitted with highly accurate sensors, the system can achieve high precision closed loop control. YVF series motors are suitable for various operation systems where speed regulation is needed, such as light industry, textile, chemistry, metallurgy, crane, machine tool and so on.

Send Inquiry

Product Description

Frame size	80-355
Output	0.75kW-355kW
Voltage/frequency	≤ 1000V / 50Hz, 60Hz
Running zone (Constant Torque / Power)	5-50Hz & 50-100Hz
Protection degree	IP55 / IP56 / IP65 / IP66
Insulation / Temp Rise Class	F / B
Mounting arrangements	IM B3 / IM B5 / IM B35 / IM V1
Ambient temperature	-15°C ~ +40°C
Relative humidity	Less than 90%
Altitude / Cooling	Lower than 1000m above sea level / IC416
Duty / Service factor	S1 / 1.0

ℹ

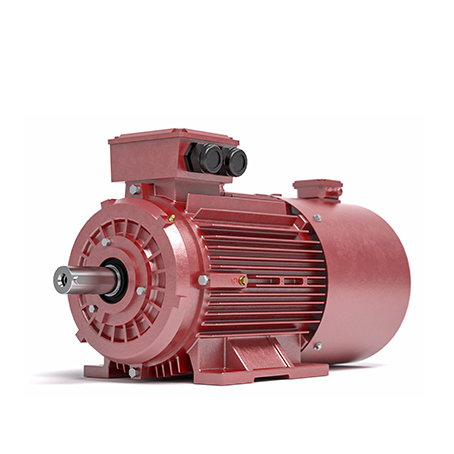

YVF series motors use a squirrel-cage rotor structure, equipped with a separated axial-flow ventilator to ensure an excellent cooling effect across different operating speeds.

⚙ Special Design & Production Requirements:

Special voltage, frequency and power
Special insulation class and protection class
Terminal box on the left side, double shaft ends and special shaft
High temperature motor or low temperature motor
Used on plateau or outdoor applications
Higher power or special service factor
Heater, PT100 for bearings or winding, PTC
Encoder, insulated bearings, or insulated bearing structure
Other customized technical requirements

Note: This technical data is for reference. Please specify rated data when ordering, including motor type, power, voltage, speed, insulation class, protection class, and mounting type.

Frequently Asked Questions (FAQ)

Q1: What is the output power range for the YVF series motors? The output power ranges from 0.75kW to 355kW with frame sizes from 80 to 355.

Q2: What cooling method is used for these motors? The motors utilize the IC416 cooling method, featuring a separated axial-flow ventilator for optimized heat dissipation at various speeds.

Q3: Can these motors be customized for special environments? Yes, we can design motors for high or low temperature environments, outdoor use, or high-altitude plateau applications.

Q4: What are the standard protection and insulation classes? The standard protection degrees are IP55, IP56, IP65, or IP66, with an insulation class of F and a temperature rise class of B.

Q5: What frequencies and voltages are supported? The motors support voltages up to 1000V and frequencies of 50Hz or 60Hz. Special voltage and frequency requirements can also be accommodated.

Q6: What mounting options are available for the YVF series? Common mounting arrangements include IM B3, IM B5, IM B35, and IM V1.
