Wholesale Y Series (IP23) High Voltage Three Phase Asynchronous Induction Product, Service

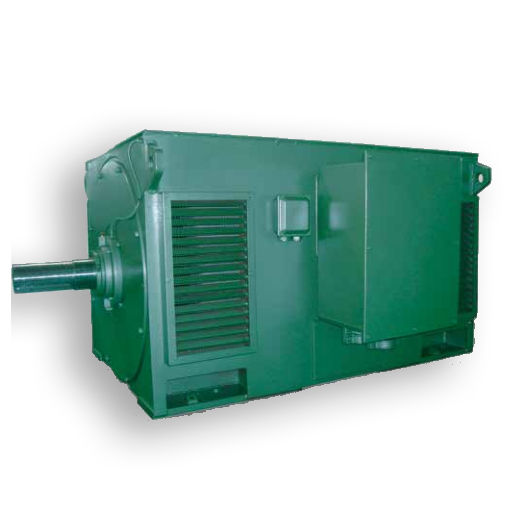

Y series high voltage motor is squirrel-cage three phase asynchronous induction motor .The motor has protection class IP23,cooling method IC01,insulation class F, and mounting arrangement IMB3.The rated voltage is 6KV or 10 KV.
This series motor is designed to be a box-type with light weight and high rigidity. The motors have good features of high efficiency, low noise, low vibration, reliable performance, easy installation and maintenance. They are widely used in power station, water plant, petrochemical, metallurgy and mining industries.
Y series high voltage motor is a squirrel-cage three-phase asynchronous induction motor designed for high efficiency and reliability. Featuring a protection class of IP23, these motors are engineered to operate at rated voltages of 6KV or 10KV, providing robust performance for various industrial applications.
We offer tailored engineering solutions to meet specific customer requirements:
Special voltage, frequency, and power ratings
Enhanced insulation and protection classes
Left-side terminal box, double shaft ends, or specialized shafts
High-temperature or low-temperature environment adaptation
Configurations for high-altitude (plateau) or outdoor usage
Higher power density or special service factors
Integrated heaters, PT100 for bearings/windings, and PTC thermistors
Encoders, insulated bearings, or specialized bearing structures
Ordering Notes
When placing an order, please specify the required rated data including: Motor type, power, voltage, speed, insulation class, protection class, and mounting type. Note that the data provided in this catalogue serves as a reference; technical specifications may be updated without prior notice.
Frequently Asked Questions
What is the standard protection rating for Y series motors?
The Y series high voltage motors come with a standard protection degree of IP23.
What voltage options are available for these motors?
These motors are designed for high voltage applications, specifically 6kV and 10kV at a frequency of 50Hz.
What is the range of rated power for the 6kV models?
For the 6kV configuration, the rated power ranges from 220kW to 5000kW.
Can these motors be used in extreme temperatures?
The standard operating ambient temperature is between -15°C and +40°C, but special designs for high or low temperature environments are available upon request.
Is customization available for mounting and shaft configurations?
Yes, we can provide special shaft designs, double shaft ends, and varied terminal box positions (e.g., on the left side) to suit your specific installation needs.
Are protective accessories like sensors included?
We can integrate additional features such as PT100 sensors for bearings or windings, heaters, and PTC thermistors based on customer requirements.
