Famous FP Series PM Motors Exporter, Service

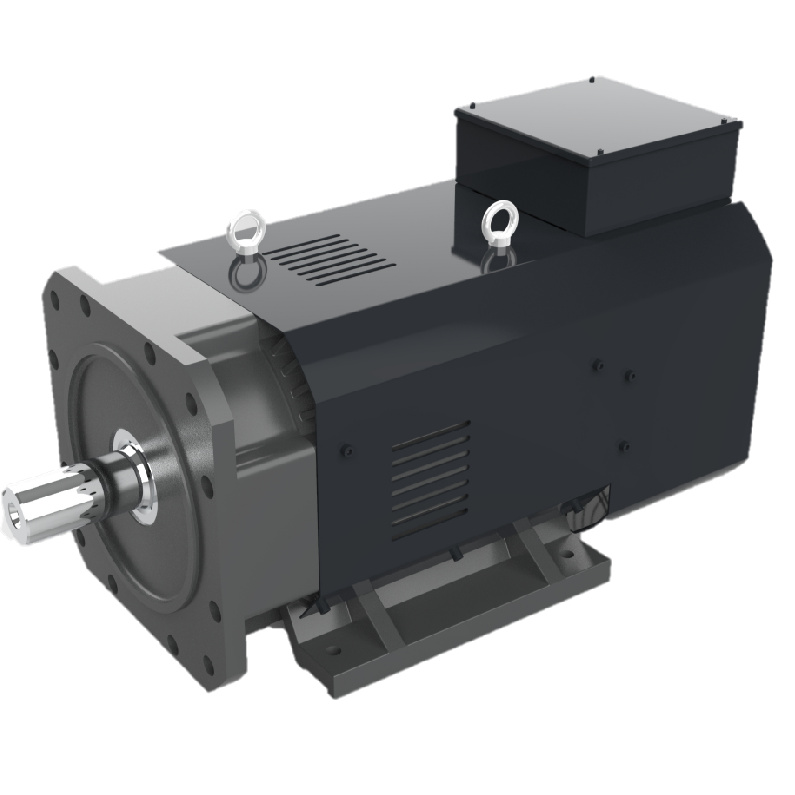

The FP series air-cooled permanent magnet synchronous motor is a leading motor product,independently developed and designed by our company, in response to the national energy conservation and emission reduction policies, and market demands. It boasts advantages such as high efficiency, high power factor, and large torque, which traditional motors cannot match, making it particularly suitable for high-energy-efficiency and high-performance application scenarios. Meanwhile, it also features a solid structure, low vibration, low noise, safe and reliable operation, etc., which can meet various needs in the field of industrial transmission.

Send Inquiry

Product Description

Technical Specifications & Performance Parameters

Model	Power (kW)	Voltage (V)	Current (A)	Efficiency (%)	Power Factor (cosφ)	Torque (N·m)	Frequency (Hz)	Wiring
Rated Speed: 3000 RPM
112-5.5-30	5.5	380	9.6	94	0.98	17.5	200	Y
112-7.5-30	7.5	380	13	94.5	0.98	23.9	200	Y
132-11-30	11	380	19	95	0.98	35	200	Y
132-15-30	15	380	25.8	95.3	0.98	47.8	200	Y
132-18.5-30	18.5	380	31.7	95.6	0.98	58.9	200	Y
132-22-30	22	380	37.5	95.9	0.98	70	200	Y
160-30-30	30	380	51	96.1	0.98	95.5	200	Y
160-37-30	37	380	63	96.3	0.98	117.8	200	Y
180-45-30	45	380	76	96.4	0.98	143	200	Y
200-55-30	55	380	91	96.5	0.98	175.1	200	Y
225-75-30	75	380	125	96.6	0.98	238.8	200	Y
225-90-30	90	380	150	96.7	0.98	286.5	200	Δ
250-110-30	110	380	183	96.7	0.98	350.2	200	Δ
250-132-30	132	380	220	96.7	0.98	420.2	200	Δ
250-160-30	160	380	267	96.7	0.98	509.3	200	Δ
250-185-30	185	380	309	96.7	0.98	588.9	200	Δ
250-200-30	200	380	333	96.7	0.98	636.7	200	Δ
280-220-30	220	380	371	96.7	0.97	700.3	200	Δ
280-250-30	250	380	422	96.7	0.97	795.8	200	Δ
280-280-30	280	380	472	96.7	0.97	891.3	200	Δ
280-315-30	315	380	521	96.7	0.97	1002.7	200	Δ
Rated Speed: 1500 RPM
112-5.5-15	5.5	380	9.8	92.1	0.98	35	100	Y
112-7.5-15	7.5	380	13.4	92.6	0.98	47.8	100	Y
132-11-15	11	380	19.5	93.6	0.98	70	100	Y
132-15-15	15	380	26.1	94	0.98	95.5	100	Y
132-18.5-15	18.5	380	32.1	94.3	0.98	117.8	100	Y
160-22-15	22	380	38	94.7	0.98	140.1	100	Y
160-30-15	30	380	51.7	95	0.98	191	100	Y
180-37-15	37	380	63.5	95.3	0.98	235.6	100	Y
180-45-15	45	380	77.1	95.6	0.98	286.5	100	Y
200-55-15	55	380	94	95.8	0.98	350.2	100	Y
225-75-15	75	380	124.3	96	0.98	477.5	100	Y
225-90-15	90	380	149	96.2	0.98	573	100	Δ
250-110-15	110	380	182	96.3	0.98	700.3	100	Δ
250-132-15	132	380	225	96.4	0.98	840.4	100	Δ
280-160-15	160	380	271	96.6	0.98	1018.7	100	Δ
280-185-15	185	380	313	96.7	0.98	1177.8	100	Δ
280-200-15	200	380	338	96.7	0.98	1273.3	100	Δ
280-220-15	220	380	372	96.7	0.98	1400.7	100	Δ

Model	Power (kW)	Voltage (V)	Current (A)	Efficiency (%)	Power Factor (cosφ)	Torque (N·m)	Frequency (Hz)	Wiring
Rated Speed: 1000 RPM
112-3-10	3	380	5.3	91.8	0.98	28.7	66.7	Y
112-4-10	4	380	7	92.7	0.98	38.2	66.7	Y
112-5.5-10	5.5	380	9.9	93.4	0.98	52.5	66.7	Y
132-7.5-10	7.5	380	13.4	94	0.98	71.6	66.7	Y
132-11-10	11	380	19	94.5	0.98	105.1	66.7	Y
160-15-10	15	380	25.8	94.9	0.98	143.3	66.7	Y
160-18-10	18.5	380	32.7	95.3	0.98	176.7	66.7	Y
180-22-10	22	380	38.7	95.6	0.98	210.1	66.7	Y
180-30-10	30	380	52	95.8	0.98	286.5	66.7	Y
200-37-10	37	380	64	96	0.98	353.4	66.7	Y
225-45-10	45	380	76.6	96.2	0.98	429.8	66.7	Y
225-55-10	55	380	91	96.3	0.98	525.3	66.7	Y
250-75-10	75	380	124	96.4	0.98	716.3	66.7	Y
250-90-10	90	380	149	96.5	0.98	859.5	66.7	Δ
280-110-10	110	380	185	95.8	0.98	1050.5	66.7	Δ
280-132-10	132	380	225	96	0.98	1260.6	66.7	Δ
280-160-10	160	380	272	96.2	0.98	1528	66.7	Δ
Rated Speed: 750 RPM
112-3-75	3	380	5.5	89	0.98	38.2	50	Y
112-4-75	4	380	7.3	90.2	0.98	50.9	50	Y
112-5.5-75	5.5	380	9.9	90.9	0.98	70	50	Y
132-7.5-75	7.5	380	13.4	91.5	0.98	95.5	50	Y
160-11-75	11	380	19.4	92.7	0.98	140.1	50	Y
180-15-75	15	380	27.1	93.3	0.98	191	50	Y
180-18-75	18.5	380	33.1	94	0.98	235.6	50	Y
180-22-75	22	380	38.6	94.5	0.98	280.1	50	Y
200-30-75	30	380	51.8	94.7	0.98	382	50	Y
225-37-75	37	380	63.7	95	0.98	471.1	50	Y
225-45-75	45	380	75	95.2	0.98	573	50	Y
250-55-75	55	380	92	95.4	0.98	700.3	50	Y
280-75-10	75	380	128	95.6	0.98	955	50	Y
280-90-10	90	380	154	95.6	0.98	1146	50	Δ
280-110-10	110	380	190	95.6	0.98	1400.7	50	Δ

Frequently Asked Questions (FAQ)

1. What is the standard voltage and frequency for these motors?

The standard rated voltage is 380V, and the rated frequency varies between 50Hz, 66.7Hz, 100Hz, and 200Hz depending on the specific model and speed requirement.

2. What are the available rated speed options?

The models are categorized into four primary rated speed groups: 3000 RPM, 1500 RPM, 1000 RPM, and 750 RPM.

3. What does the "Y" and "Δ" wiring method represent?

"Y" represents a Star (Wye) connection, typically used for smaller frames or specific starting requirements, while "Δ" represents a Delta connection, used for higher power models.

4. How efficient are these motors?

These motors exhibit high energy efficiency, with many models reaching over 96% efficiency, particularly in the higher power ranges.

5. What is the typical power factor for these models?

Most models feature a very high power factor of 0.98 (cosφ), ensuring optimized electrical performance and reduced energy losses.

6. What is the power range available in this technical series?

The power output range is extensive, starting from 3kW for compact models up to 315kW for heavy-duty industrial applications.
