High-Quality YLKK Modular motors Exporter, Company

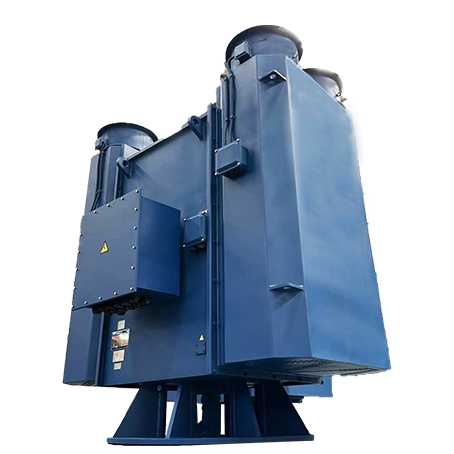

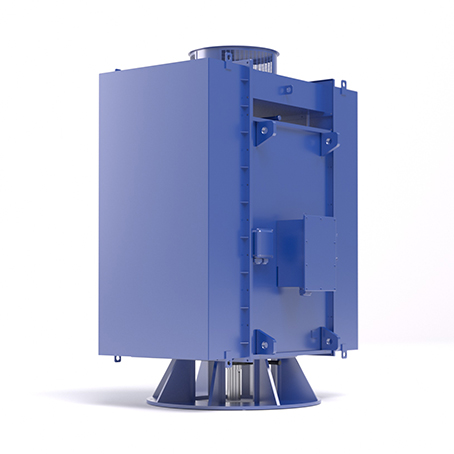

YLKK Series vertical high voltage motor is the new product designed with the latest technology. This series motors stand out for high efficiency, high energy savings, low vibration, low weight, compact structure, reliable operation and convenient maintenance. The motors comply with the national standard GB755 “rotating electrical machines-rating and performance” and the relevant IEC standards. The motor frame is welded by steel plate, and offer excellent rigidity and vibration resistance performance. They are manufactured with F insulation structure and VPI vacuum pressure impregnation process. The non-stop filling and discharging bearing system ensures a convenient maintenance. Special requirements on voltage, power, frequency and mounting dimension can be customized.

Send Inquiry

Product Description

Frame size:355-710(6kV) / 400-710(10kV)

Output:185kW-3150kW(6kV) / 220kW-2500kW(10kV)

Voltage/Frequency:6kV, 10kV / 50Hz

Mounting:IM V1

Protection:IP44/IP54/IP55

Cooling:IC611 / IC616

Frame No.	Pole	N	P	M	D	E	F	G	T	LA	AC	AD	L	AF
355	4,6	880	1000	940	100	210	28	90	6	32	1100	800	2300	1500
400	4,6,8,10	1000	1150	1080	110	210	28	100	6	35	1150	850	2500	1650
450	4	1120	1250	1180	120	210	32	109	6	35	1300	900	2700	1800
450	6,8,10,12	1120	1250	1180	130	250	32	119	6	35	1300	900	2700	1800
500	4	1250	1400	1320	130	250	32	119	8	35	1400	965	2900	2000
500	6,8,10,12	1250	1400	1320	140	250	36	128	8	35	1400	965	2900	2000
560	4	1400	1600	1500	150	250	36	138	8	42	1600	1100	3300	2200
560	6,8,10,12	1400	1600	1500	160	300	40	147	8	42	1600	1100	3300	2200
630	4	1600	1800	1700	170	300	40	157	9	42	1800	1200	3600	2400
630	6,8,10,12	1600	1800	1700	180	300	45	165	9	42	1800	1200	3600	2400

Note: The data listed in the table is for users' reference. In case of any discrepancy with the random file, the random file shall prevail.

Frame No.	Pole	N	P	M	D	E	F	G	T	LA	AC	AD	L
400	4,6	1000	1150	1080	110	210	28	100	6	35	1100	800	2500
450	4,6,8,10	1120	1250	1180	110	210	28	100	6	35	1300	1050	2700
500	4	1250	1400	1320	130	210	32	119	8	35	1400	1110	2900
500	6,8,10,12	1250	1400	1320	130	250	32	119	8	35	1400	1110	2900
560	4	1400	1600	1500	150	250	36	138	8	42	1600	1200	3300
560	6,8,10,12	1400	1600	1500	160	300	40	147	8	42	1600	1200	3300
630	4	1600	1800	1700	170	300	40	157	9	42	1800	1300	3600
630	6,8,10,12	1600	1800	1700	180	300	45	165	9	42	1800	1300	3600

Note: The data listed in the table is for users' reference. In case of any discrepancy with the random file, the random file shall prevail.

YLKK Series motors comply with the national standard GB755 and the relevant IEC standards. The motor frame is welded by steel plate, and offer excellent rigidity and vibration resistance performance. They are manufactured with F insulation structure and VPI vacuum pressure impregnation process. The non-stop filling and discharging bearing system ensures a convenient maintenance.

Frequently Asked Questions

What is the output range of YLKK series motors?

The output range is 185kW to 3150kW for 6kV models and 220kW to 2500kW for 10kV models.

Which standards do these motors comply with?

YLKK series motors comply with the national standard GB755 and relevant international IEC standards.

What are the available protection degrees?

These motors offer flexible protection options including IP44, IP54, and IP55.

How is the motor frame constructed?

The motor frame is welded using steel plates, providing excellent rigidity and superior vibration resistance.

What cooling methods are utilized?

The motors utilize IC611 or IC616 cooling methods to ensure optimal thermal performance.

What are the insulation properties of the YLKK series?

They feature Class F insulation and are manufactured using the VPI (Vacuum Pressure Impregnation) process.
