Buy Y/YKS/YX modular motors Exporter, Service

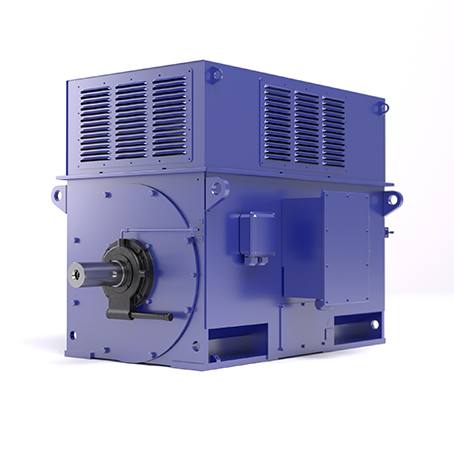

Y/YKS/YX modular motorsstand out for high efficiency, high energy savings, low vibration, low weight, compact structure, reliable operation and convenient maintenance. The motors comply with the national standard GB755 and the relevant international standards, and suitable to drive compressors, fans, water pumps, industrial freezers, conveyor belts, crushers and other general machinery. Please specify the requirements in the order when motors are mounted on high moment of inertia equipment like blower, coal pulverizer, rolling mill, winch and belt conveyor. The motor frame is welded by steel plate, and offer excellent rigidity and vibration resistance performance. The non-stop filling and discharging bearing system ensures a convenient maintenance. Special requirements on voltage, power, frequency and mounting dimension can be customized. YKS water cooling motors have the same power range, performance, dimension as Y series.

Send Inquiry

Product Description

The motor base is welded into one body by steel plate, which has good rigidity and vibration resistance. The motor adopts F grade insulation structure, vacuum pressure dip paint has good insulation performance. Bearing structure is equipped with non-stop oil filling and discharging device, convenient for users to use and maintain.

⚙️

Customization
Special requirements such as voltage, power, frequency, and installation size can be customized.

💧

YKS Series
Water-cooled series with performance and installation sizes identical to Y series.

Technical Specifications
Frame size	355-710（6KV）/ 400-710(10KV)
Output	220KW-5000KW（6KV）/ 220KW-4500KW (10KV)
Voltage/frequency	6KV, 10KV/50Hz
Mounting arrangements	IMB3
Protection degree	IP23
Cooling method	IC611/IC616
Insulation class	F
Ambient temperature	-15°C ~ +40°C
Duty	S1
Service factor	1.0

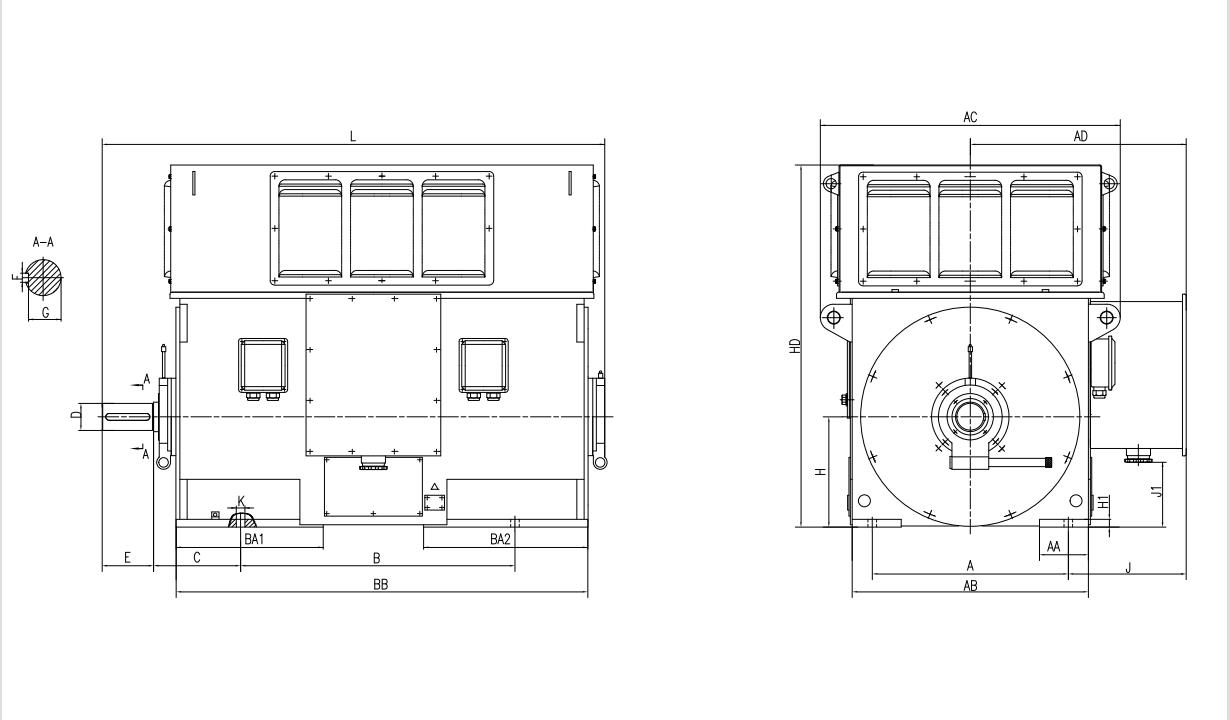

Frame NO.	Poles	Mounting dimensions (mm)									Overall dimensions (mm)
Frame NO.	Poles	A	B	C	D	E	F	G	H	K	AC	AD	HD	AB	BB	AA	J	J1	H1	L
355	2, 4, 6	630	900	315	80/100	170/210	22/28	71/90	355	28	1100	800	1170	784	1380	170	224	136	28	1870/1890
400	2, 4, 6...	710	1000	375/335	90/110	170/210	25/28	81/100	400	35	1150	850	1330	884	1540	200	234	168	28	2090/1980
450	2, 4, 6...	800	1120	400/355	100/130	210/250	28/32	90/119	450	35	1300	900	1475	964	1680	200	229	260	32	2340/2180
500	2, 4, 6...	900	1250	560/475	110/140	210/250	28/36	100/128	500	42	1420	965	1665	1094	1830	200	244	358	32	2790/2550
560	2, 4, 6...	1000	1400	560/500	130/160	250/300	32/40	119/147	560	42	1600	1100	1850	1176	1940	200	300	345	40	3020/2900
630	2, 4, 6...	1120	1600	560/530	140/180	250/300	36/45	128/165	630	48	1800	1200	2050	1336	2050	200	320	510	46	3220/3100

Y/YKS/YX series motors comply with the national standard GB755 and the relevant international standards. The frame is welded by steel plate and offers excellent rigidity and vibration resistance performance. They are manufactured with F insulation structure and VPI vacuum pressure impregnation process. The non-stop filling and discharging bearing system ensures convenient maintenance.

Frequently Asked Questions

Q1: What materials are used for the motor base construction? The motor base is welded into a single body using high-quality steel plates, providing superior rigidity and vibration resistance.

Q2: What is the insulation class of the YKS series motors? These motors utilize an F-grade insulation structure and undergo a vacuum pressure impregnation (VPI) process for excellent insulation performance.

Q3: Are the motors easy to maintain? Yes, the bearing structure is designed with a non-stop oil filling and discharging device, making maintenance highly convenient for users.

Q4: Can I request customized motor specifications? Absolutely. Voltage, power, frequency, and installation dimensions can be tailored to meet your specific application requirements.

Q5: What are the cooling methods available? The standard cooling methods for this series include IC611 and IC616, with YKS specifically being water-cooled.

Q6: What standards do these motors comply with? The Y/YKS/YX series motors comply with the GB755 national standard and relevant international industrial standards.
