ODM IE5 Efficiency Motor Supplier, Pricelist

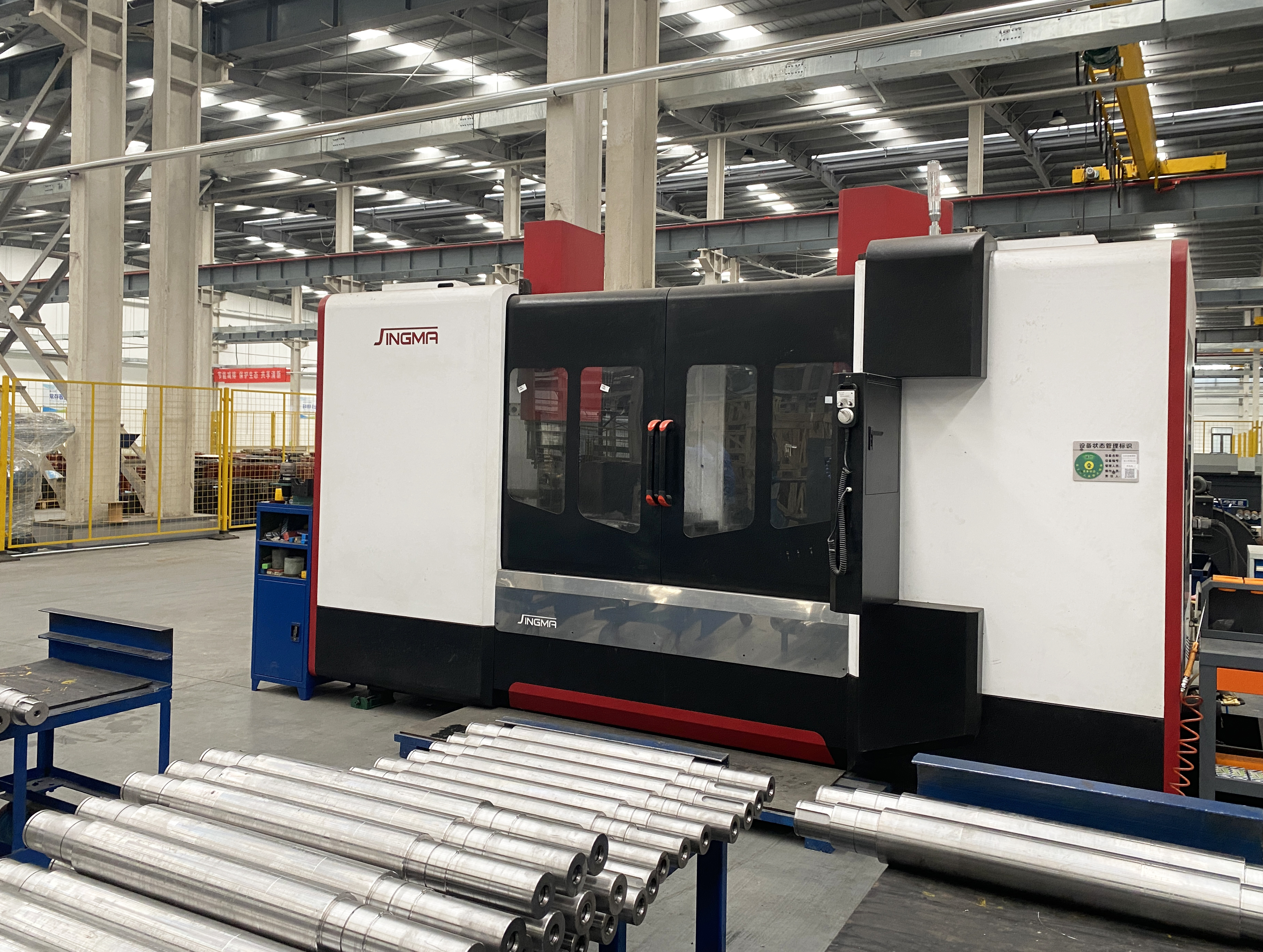

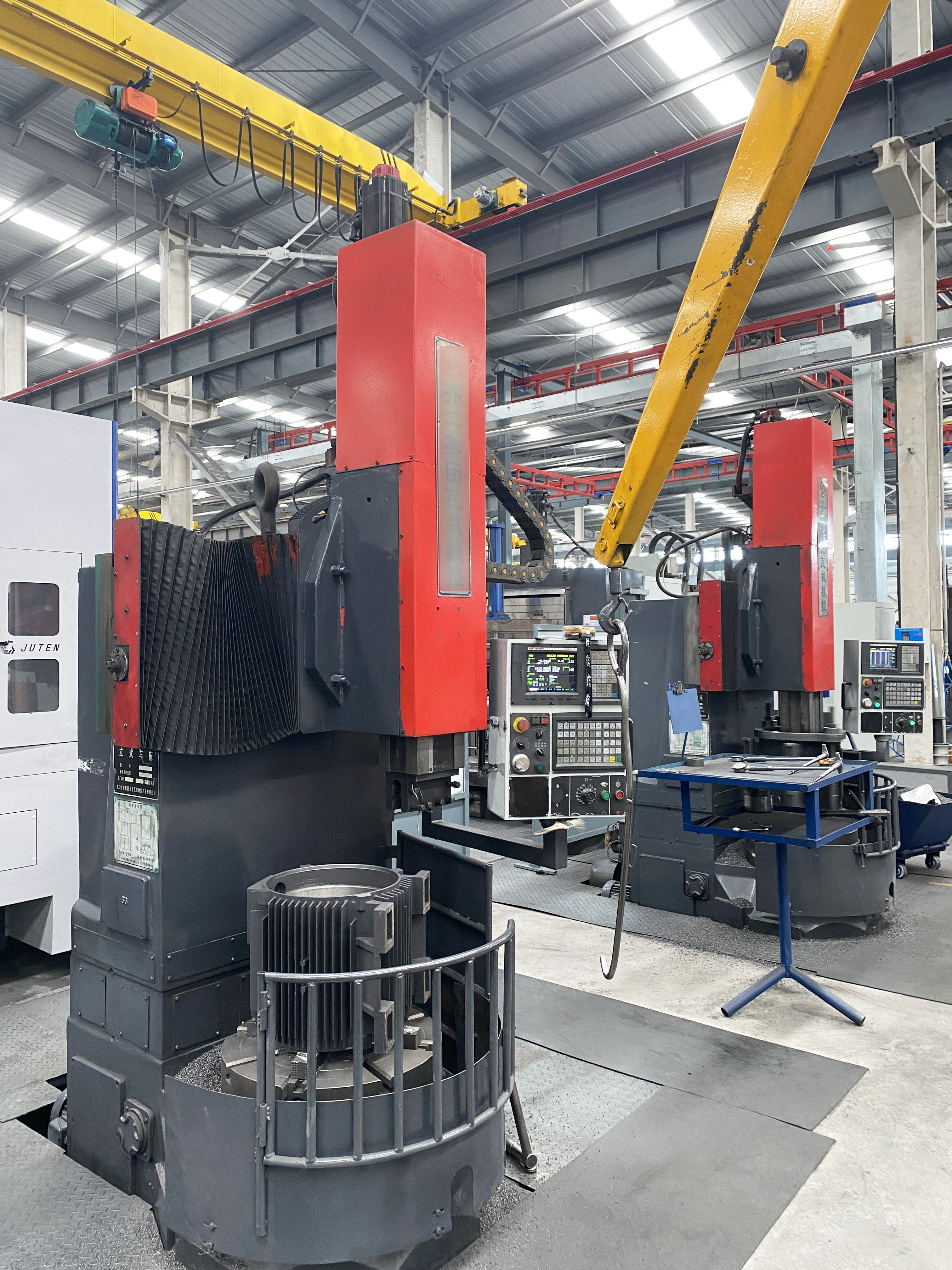

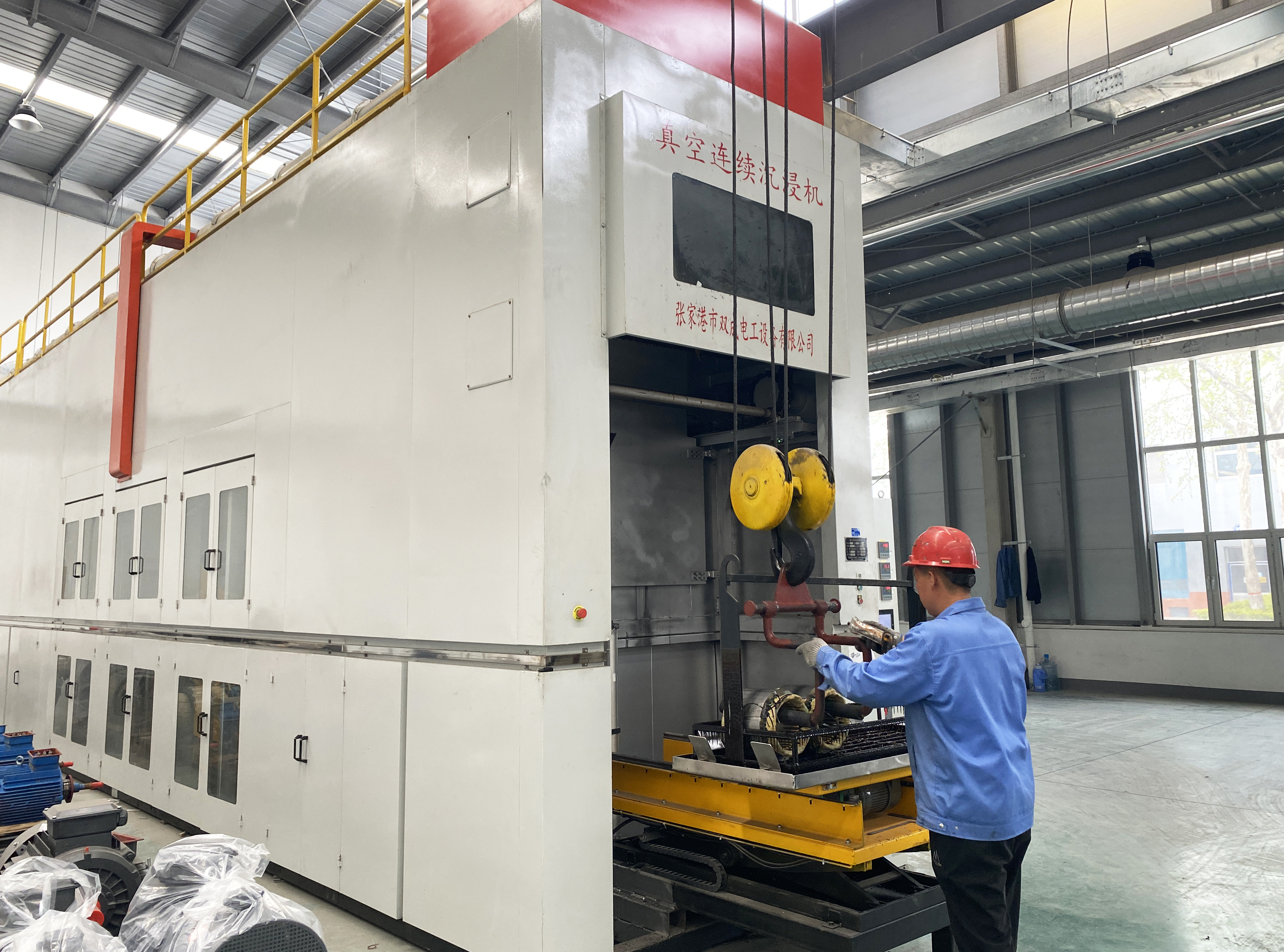

SUNVIM IE5 electric motors are manufactured according to international standard IEC60034-30. All IE5 motors are provided with premium quality cold-rolled silicon steel, low harmonics winding, VPI vacuum pressure impregnation and high precision CNC machining process. SUNVIM IE5 motors have the advantage of high efficiency, low temperature rise, low noise, good reliability and long service time. The motors can be provided with protection grade IP55, IP56, IP65, IP66 and insulation grade F, H, and have registered in national energy label system.

Send Inquiry

Product Description

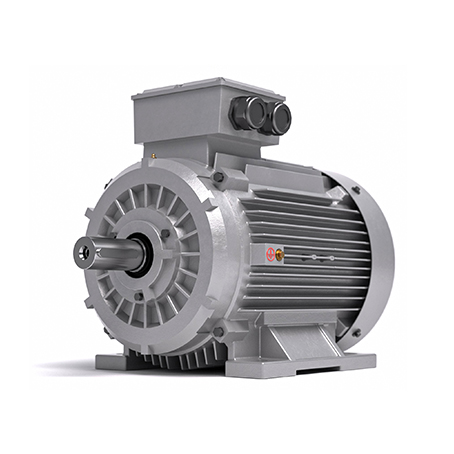

IE5 Series motors are cage induction motors designed in accordance with IEC60034-30 standards and achieve IE5 ultra-premium energy efficiency levels. This series represents the cutting edge of energy-saving motor technology for industrial applications.

Technical Specifications

Standard	IEC60034-30
Frame size	80-355
Output	0.75kW-315kW
Efficiency class	IE5
Voltage/frequency	≤ 1000V / 50Hz
Protection degree	IP55 / IP56 / IP65 / IP66
Insulation/Temp Rise	Class F / Class B
Mounting arrangements	IM B3 / IM B5 / IM B35 / IM V1
Ambient temperature	-15°C ~ +40°C
● Relative humidity should be less than 90%
● Altitude should be lower than 1000 m above sea level
Cooling method	IC411 / IC416 / IC418 / IC410
Duty	S1
Service factor	1.0

Custom Design & Special Requirements

✓

Special voltages, frequencies and power ratings tailored to local requirements.

✓

Advanced insulation and higher protection classes for harsh environments.

✓

Flexible mechanical configurations: left-hand terminal box, double shaft ends, or special shafts.

✓

Extreme temperature versions: specifically built for high or low temperature operations.

✓

Enhanced protection for highland (high altitude) or outdoor specialized use.

✓

Integrated monitoring: available with PT100, PTC heaters, encoders, and isolated bearing constructions.

Product Display

Frequently Asked Questions

What makes the IE5 series different from standard motors?

The IE5 series represents the Ultra-Premium Efficiency class according to IEC 60034-30 standards, offering significantly lower energy consumption and operational costs compared to IE2 or IE3 motors.

What is the range of power output available?

Our IE5 induction motors cover a wide power range from 0.75kW up to 315kW, with frame sizes ranging from 80 to 355.

Can these motors be used in outdoor or high-altitude environments?

Yes, we can design motors specifically for outdoor use and altitudes higher than 1000m. Standard models are rated for up to 1000m and temperatures between -15°C to +40°C.

What customization options are available for the shafts and terminal boxes?

We offer specialized designs including double shaft ends, special shaft dimensions, and the option for left-hand terminal box placement to meet your specific equipment needs.

Are there options for thermal protection and monitoring?

Absolutely. Motors can be equipped with heating elements, PT100 sensors, or PTC thermistors for windings and bearings, as well as encoders for precise speed control.

What protection degrees are supported?

Depending on your application requirements, we provide protection degrees ranging from IP55 to IP66 to ensure durability against dust and water ingress.
