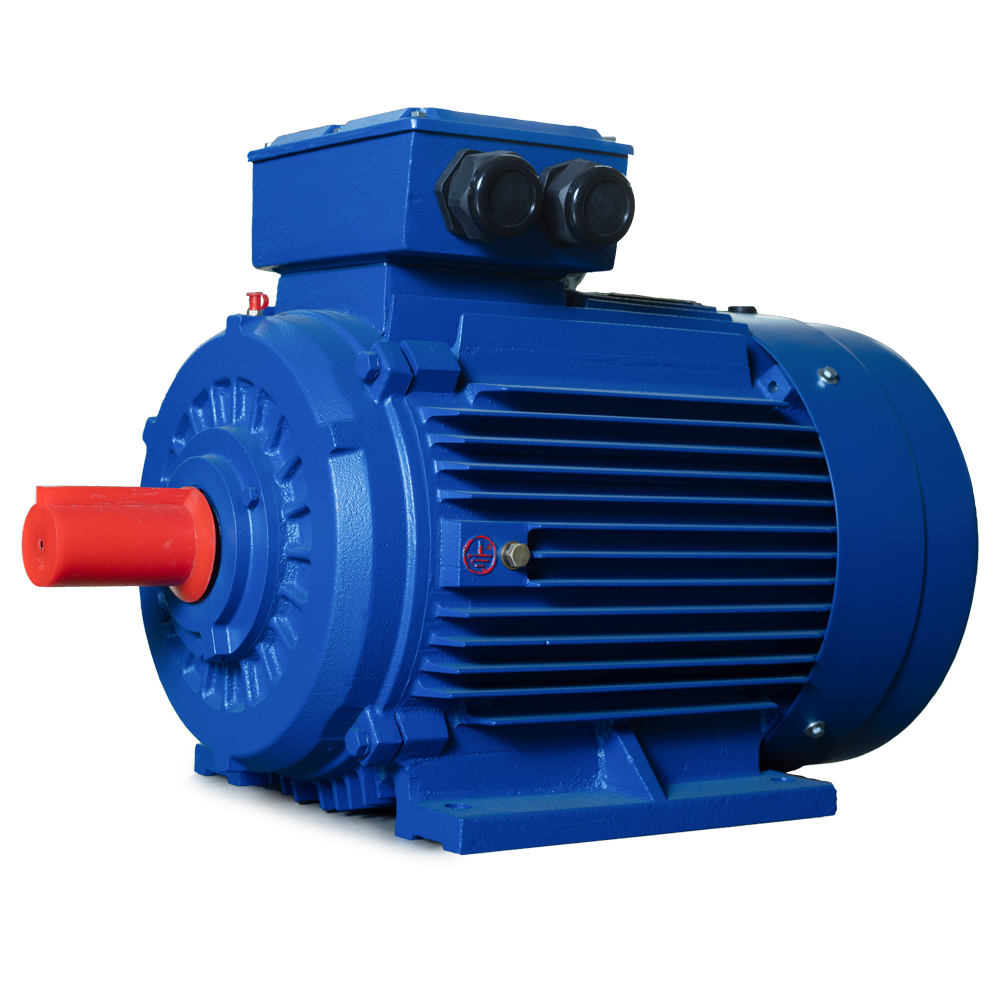

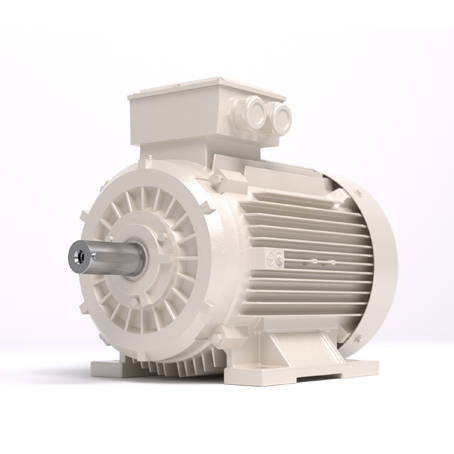

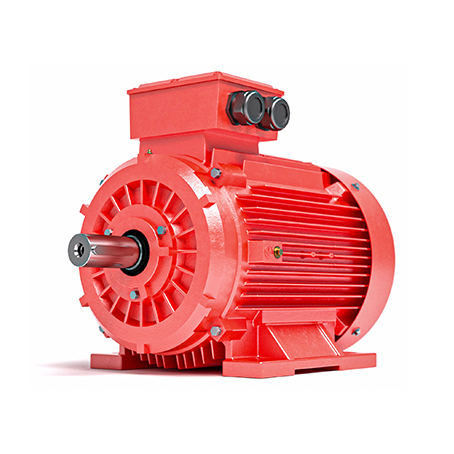

IE2 Series motors are cage induction motors designed in accordance with IEC standards and IE2 energy efficiency.
| Standard |
IEC60034-30 |
| Frame size |
80-355 |
| Output |
0.18kW-355kW |
| Efficiency class |
IE2 |
| Voltage/frequency |
≤1000V/50Hz, 60Hz |
| Protection degree |
IP55/IP56/IP65/IP66 |
| Insulation/Temp Rise |
F\B |
| Mounting |
IM B3/IM B5/IM B35/IM V1 |
| Ambient temperature |
-15°C - +40°C |
| Relative humidity should be less than 90% |
| Altitude should be lower than 1000m above sea level |
| Cooling Method |
IC411/ IC416/IC418/IC410 |
| Duty |
S1 |
| Service factor |
1.0 |
⚙️ Custom Design & Production
✔ 1. Special voltages, frequencies and powers.
✔ 2. Special insulation class and protection class.
✔ 3. Left side with junction box, double shaft end and special shaft.
✔ 4. High temperature motors or low temperature motors.
✔ 5. In highland or outdoor use.
✔ 6. Higher power or special service factor.
✔ 7. With heaters, bearings or windings of PT100, PTC, etc.
✔ 8. With encoder, insulated bearing, or insulated bearing construction.
📝 Ordering Reference
• This catalog is for customer reference only. Product changes may occur without advanced notice.
• When ordering, please specify order data: power, voltage, speed, insulation class, protection class, and installation type.
Frequently Asked Questions
Q: What standard do the IE2 series motors comply with?
A: Our IE2 series motors are designed in strict accordance with the IEC60034-30 standard for high energy efficiency.
Q: What is the power range available for these induction motors?
A: The output power ranges from 0.18kW up to 355kW, covering a wide variety of industrial applications.
Q: Can I request a motor for outdoor or high-altitude use?
A: Yes, we provide custom designs for highland use (above 1000m) and specific outdoor environments, including various protection degrees like IP65 or IP66.
Q: Are there special voltage and frequency options available?
A: Absolutely. We can customize the motor to support special voltages (≤1000V) and frequencies (50Hz or 60Hz) based on your requirements.
Q: What cooling methods are supported for the IE2 series?
A: Standard cooling methods include IC411, IC416, IC418, and IC410 to ensure optimal thermal performance.
Q: Can these motors be fitted with thermal sensors?
A: Yes, we can equip the motors with heaters, bearings, or windings featuring PT100 or PTC sensors for temperature monitoring.
