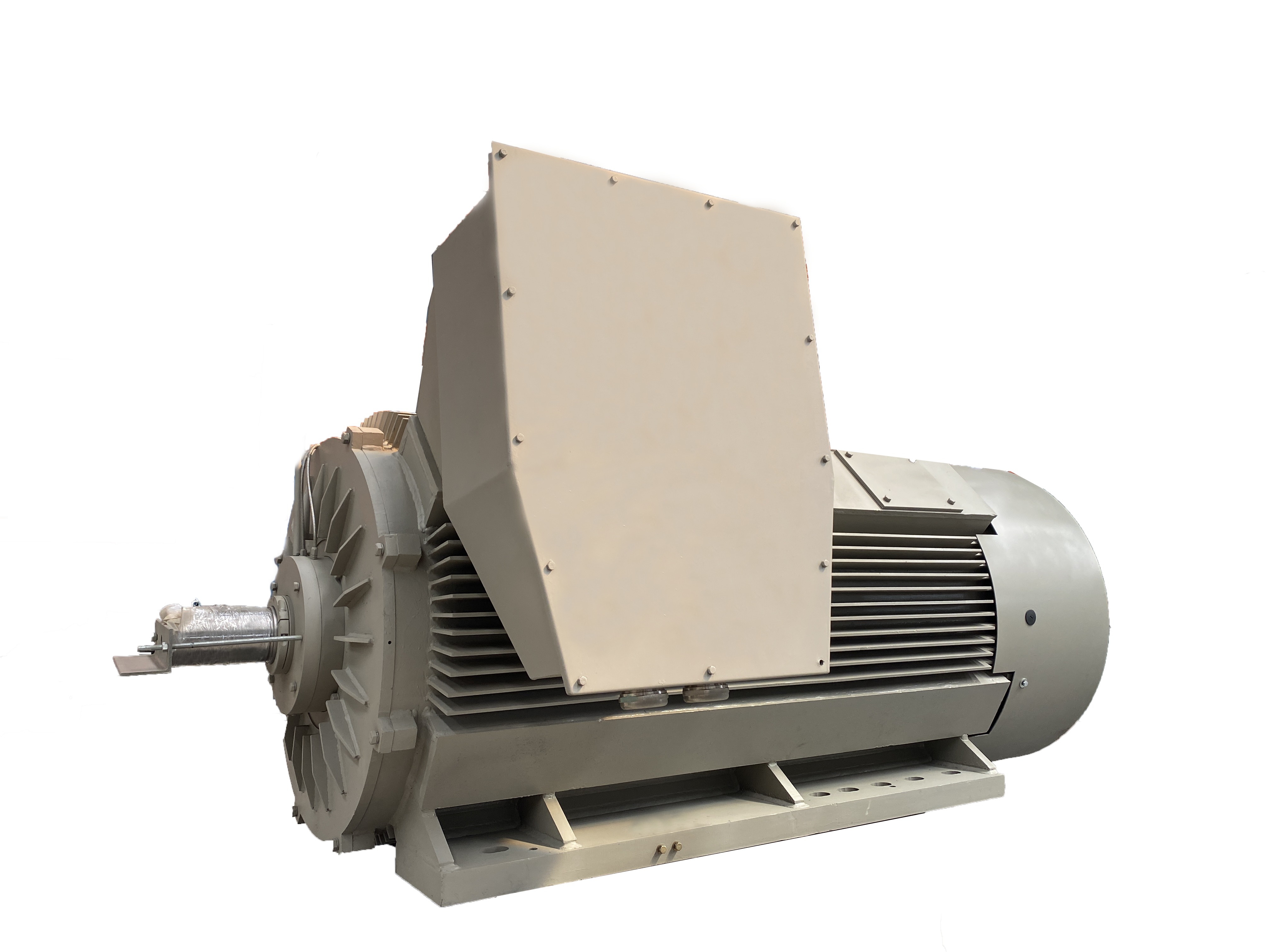

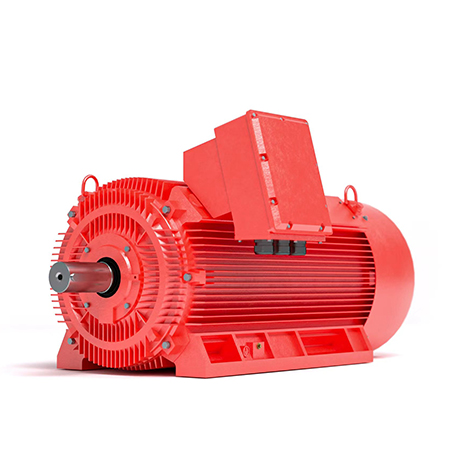

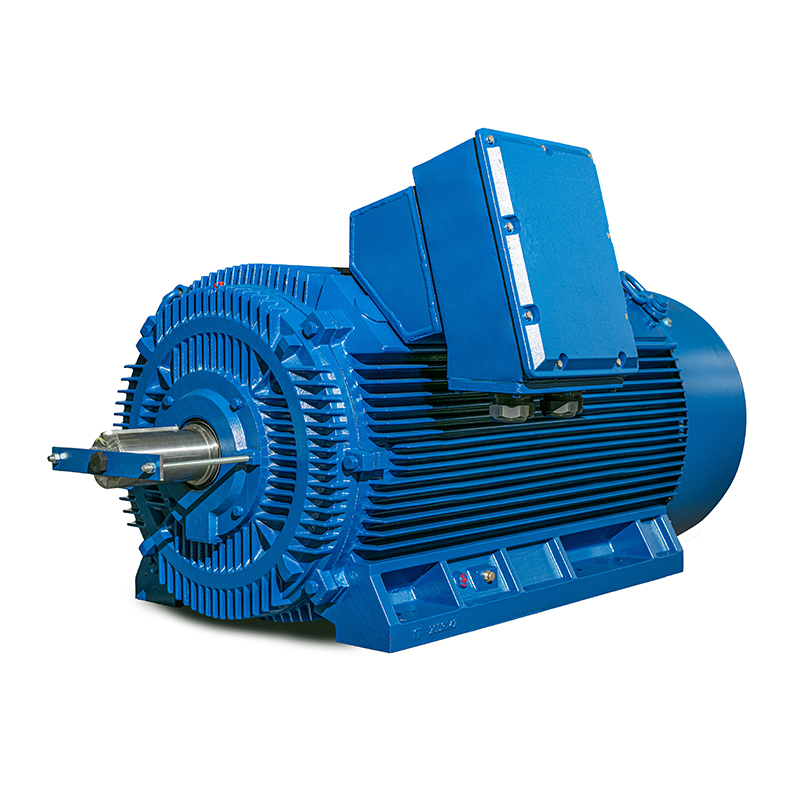

Y3 series low voltage and high power three-phase induction motor are totally enclosed fan cooled squirrel cage motors.
Technical Specifications
| Standard |
IEC60034 |
| Frame size |
355X-450X |
| Output |
220kW-1000kW |
| Voltage / Frequency |
≤1000V/50Hz, 60Hz |
| Protection degree |
IP55/IP56/IP65/IP66 |
| Insulation class/Temperature rise class |
F/B |
| Mounting arrangements |
IM B3/IM B5/IM B35/IM V1 |
| Ambient temperature |
-15°C - +40°C |
| Relative Humidity |
Should be less than 90% |
| Altitude |
Should be less than 1000 meters |
| Cooling method |
IC411/IC416 |
| Duty |
S1 |
| Service factor |
1.0 |
Customized Design & Options
We can design and produce special motors according to the requirements of the customer:
✓
Special voltage, frequency and power
✓
Special insulation class and protection class
✓
Terminal box on the left side, double shaft ends and special shaft
✓
High temperature motor or low temperature motor
✓
Used on plateau or outdoor
✓
Higher power or special service factor
✓
Equipped with heater, PT100 for bearings/winding, or PTC
✓
Equipped with encoder, insulated bearings, or insulated bearing structure
Ordering Information
Please note the rated data when ordering, such as:
- Motor type & Power
- Voltage & Speed
- Insulation class
- Protection class
- Mounting type
* This catalogue is only a reference for users. Please forgive that if any change of products will not make additional specify in advance.
Frequently Asked Questions (FAQ)
What standards do the Y3 series motors follow?
The Y3 series low voltage high power three-phase induction motors are designed in accordance with the IEC60034 standard.
What is the output power range for these motors?
These motors provide a high power output ranging from 220kW to 1000kW, suitable for heavy-duty industrial applications.
Can these motors be used in outdoor or harsh environments?
Yes, with protection degrees ranging from IP55 to IP66, they are designed to operate safely in various conditions, including options for outdoor and plateau use.
What cooling methods are available?
The standard cooling methods are IC411 and IC416, ensuring efficient thermal management during S1 continuous duty.
Are custom voltages and frequencies supported?
Absolutely. We can produce special motors with custom voltage, frequency, and power requirements based on specific customer needs.
What mounting arrangements are supported?
The Y3 series supports multiple mounting arrangements including IM B3, IM B5, IM B35, and IM V1.
