Technical Specifications
| Standard |
IEC60034-30 |
| Frame size |
80-355 |
| Output |
0.75kW-315kW |
| Efficiency class |
IE3 |
| Voltage / frequency |
≤ 1000V / 50Hz, 60Hz |
| Protection degree |
IP55 / IP56 / IP65 / IP66 |
| Insulation / Temp Rise |
Class F / Class B |
| Mounting arrangements |
IM B3 / IM B5 / IM B35 / IM V1 |
| Ambient temperature |
-15°C ~ +40°C |
| Relative humidity should be less than 90% |
| Altitude should be lower than 1000 m above sea level |
| Cooling method |
IC411 / IC416 / IC418 / IC410 |
| Duty |
S1 |
| Service factor |
1.0 |
Product Overview
IE3 Series motors are high-efficiency cage induction motors designed in strict accordance with IEC60034-30 standards. These motors represent the premium efficiency class (IE3), ensuring optimal energy savings and reliable performance for industrial applications.
Special Customization Options
✓
Special voltages, frequencies, and power ratings to meet global grid requirements.
✓
Enhanced insulation and advanced protection classes for harsh environments.
✓
Structural modifications: Left-hand terminal boxes, double shaft ends, and special shafts.
✓
Extreme condition readiness: High/low temperature configurations and highland/outdoor use.
✓
Advanced monitoring: Integration with PT100, PTC heaters, bearings, or winding sensors.
✓
Precision control: Compatible with encoders, isolated bearings, and specialized bearing constructions.

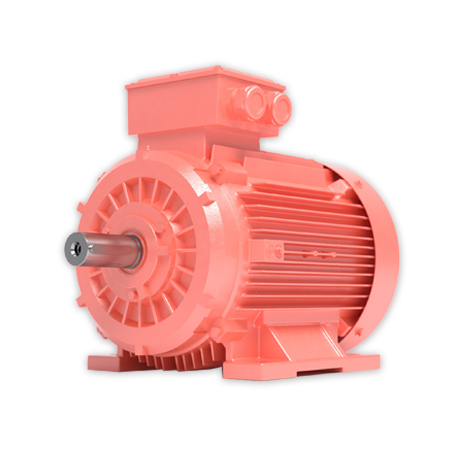

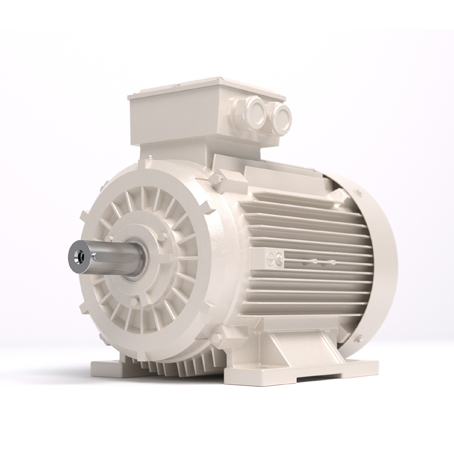

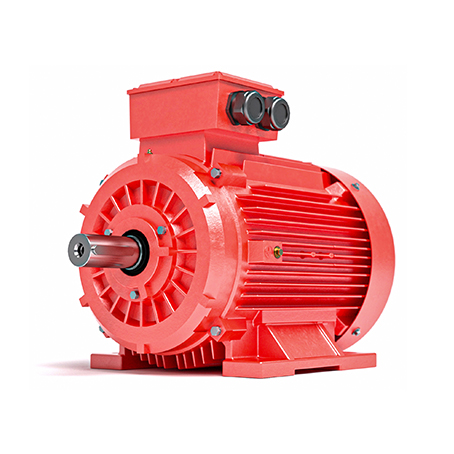

Product Gallery
Frequently Asked Questions
What are the main advantages of IE3 series motors?
IE3 motors offer premium energy efficiency according to IEC60034-30 standards, leading to reduced operational costs, lower CO2 emissions, and improved thermal performance compared to standard motors.
Can these motors operate in high-altitude environments?
Standard models are designed for altitudes up to 1000m above sea level. However, we offer special designs for highland use that account for lower air density and cooling requirements.
What protection levels are available for hazardous conditions?
We provide multiple protection degrees ranging from standard IP55 to enhanced IP56, IP65, and IP66 to ensure durability against dust and water ingress.
Is it possible to customize the motor shaft or terminal box?
Yes. We can manufacture motors with special shaft dimensions, double shaft ends, and left-hand terminal box placements based on your specific machinery layout.
Do you provide motors with built-in thermal protection?
Absolutely. Motors can be equipped with PT100 sensors, PTC thermistors, or anti-condensation heaters to protect the windings and bearings during operation.
What cooling methods are supported for the IE3 series?
The standard cooling method is IC411 (totally enclosed, fan-cooled), but we also support IC416, IC418, and IC410 for different application needs.
