Technical Specifications
Frame Size
80 - 280
Output Power
0.45kW - 82kW
Voltage/Frequency
≤1000V / 50Hz, 60Hz
Mounting Arrangements
IM B3 / IM B5 / IM B35 / IM V1
Protection Degree
IP55 / IP56 / IP65 / IP66
Insulation/Temp Rise Class
F / B
Ambient Temperature
-15℃ ~ +40℃
Cooling Method
IC411 / IC416 / IC418 / IC410
Duty / Service Factor
S1 / 1.0
Operating Environment: Relative humidity should be less than 90%. Altitude should be lower than 1000 m above sea level.

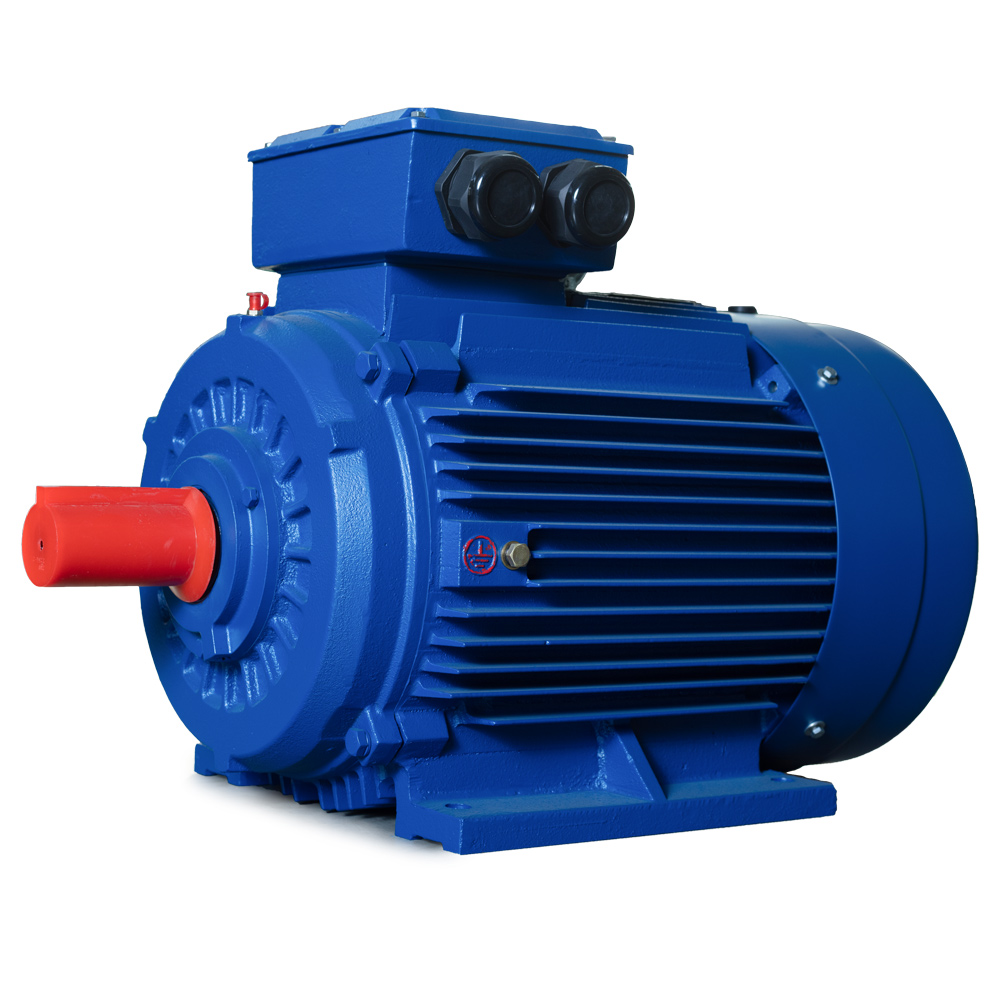

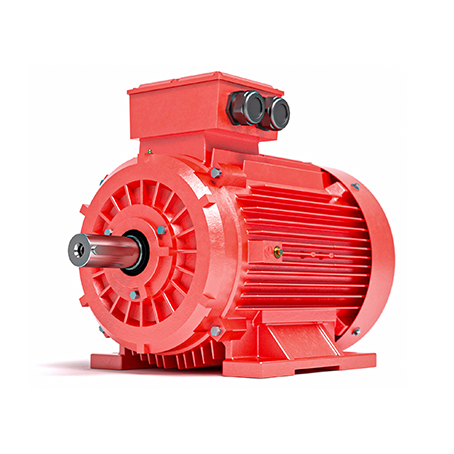

YD series motors can obtain different output and speed to drive equipment with high efficiency by changing the winding connection.
Customized Motor Solutions
We can design and produce special motors according to specific customer requirements:
- Special voltage, frequency, and power requirements
- Special insulation class and protection class ratings
- Configurations with terminal box on the left side, double shaft ends, or special shafts
- High temperature or low temperature environment motors
- Optimized designs for plateau or outdoor usage
- Higher power outputs or special service factors
- Integrated heaters, PT100 for bearings or winding, and PTC sensors
- Equipped with encoders, insulated bearings, or insulated bearing structures
- Other specialized technical requirements
● Please note the rated data when ordering, such as the motor type, power, voltage, speed, insulation class, protection class, and mounting type.
● This data is for reference. Product changes may occur without prior notice.
Frequently Asked Questions (FAQ)
What is the range of output power for these motors?
The output power ranges from 0.45kW up to 82kW, covering a wide variety of industrial applications.
What protection levels are available?
We offer multiple protection degrees including IP55, IP56, IP65, and IP66 to ensure durability in different environments.
Can these motors operate at high altitudes?
Standard models are designed for altitudes lower than 1000 meters above sea level. However, we can design special versions for plateau usage upon request.
Are custom voltage and frequency options supported?
Yes, we can produce motors with special voltages (≤1000V) and frequencies (50Hz or 60Hz) tailored to your specific power grid.
What cooling methods are used for these motors?
Available cooling methods include IC411, IC416, IC418, and IC410, depending on the operational requirements and motor type.
How do YD series motors achieve different speeds?
YD series motors achieve varying outputs and speeds by changing the winding connections, allowing for high-efficiency equipment driving.
