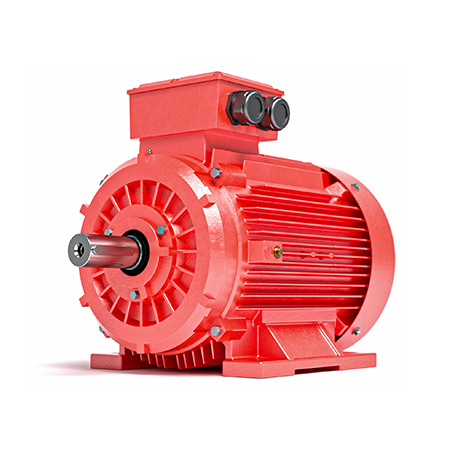

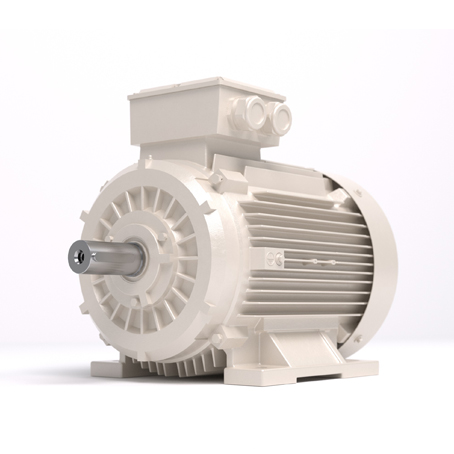

SUNVIMIE1electric motors are independently designed, and has obtained the national layout-design invention patent. The motors are designed with reliable structure, low noise and low vibration. They are widely used to drive various general equipments, like fans, pumps, machining tools, compressors, and transport machineries. The motors can also work safely and stably in industry field of petroleum, chemical , steel, mining and other places where there is with heavy load and harsh operating environment. All IE1 motors are provided with premium quality cold-rolled silicon steel, protection degree IP55 and insulation grade F. The dimension and efficiency comply to international standard IEC60034, and is the preferred choice to replace Y, Y2, and Y3 series motor.
IE1 Series motors are cage induction motor designed in accordance with IEC standards and IE1 energy efficiency.
Technical Specifications
Standard
IEC60034-30
Efficiency Class
IE1
Frame Size
80-355
Output
0.18kW-315kW
Voltage/Frequency
≤1000V / 50Hz, 60Hz
Protection Degree
IP55 / IP56 / IP65 / IP66
Insulation/Temp Rise
Class F / Class B
Mounting
IM B3 / IM B5 / IM B35 / IM V1
Ambient Temp
-15°C ~ +40°C
Cooling Method
IC411 / IC416 / IC418 / IC410
Duty / Service Factor
S1 / 1.0
Altitude
Lower than 1000 m
Relative Humidity
Less than 90%
Ordering Information: When ordering, please specify the motor type, power, voltage, speed, insulation class, protection class, and mounting method.
Customization Capabilities
We design and manufacture special motors to meet specific customer requirements:
Special voltage, frequency and power
Special insulation and protection classes
Left hand terminal box, double shaft ends
High temperature or low temperature designs
High altitude or outdoor use optimization
Higher power or special service factors
Heating systems, PT100/PTC bearings or windings
Encoders, isolated bearings or constructions
Frequently Asked Questions
What standard do these IE1 motors comply with?
The motors are designed in full accordance with the IEC60034-30 standard for cage induction motors and meet IE1 energy efficiency requirements.
What are the available protection levels for the IE1 series?
We offer a wide range of protection degrees including IP55, IP56, IP65, and IP66 to ensure durability in various environments.
Can these motors be used in high-altitude environments?
Standard models are designed for altitudes below 1000m. However, we can manufacture special versions specifically optimized for high-altitude use upon request.
What mounting arrangements are supported?
The IE1 series supports standard mounting arrangements including IM B3, IM B5, IM B35, and IM V1.
Are custom voltages and frequencies available?
Yes, we provide customization for special voltages, frequencies, and power ratings to match your specific industrial needs.
What cooling methods are used for these motors?
Standard cooling methods include IC411, IC416, IC418, and IC410, depending on the application and motor specification.
